Front Seat Back Lumbar Replacement (with W2E)

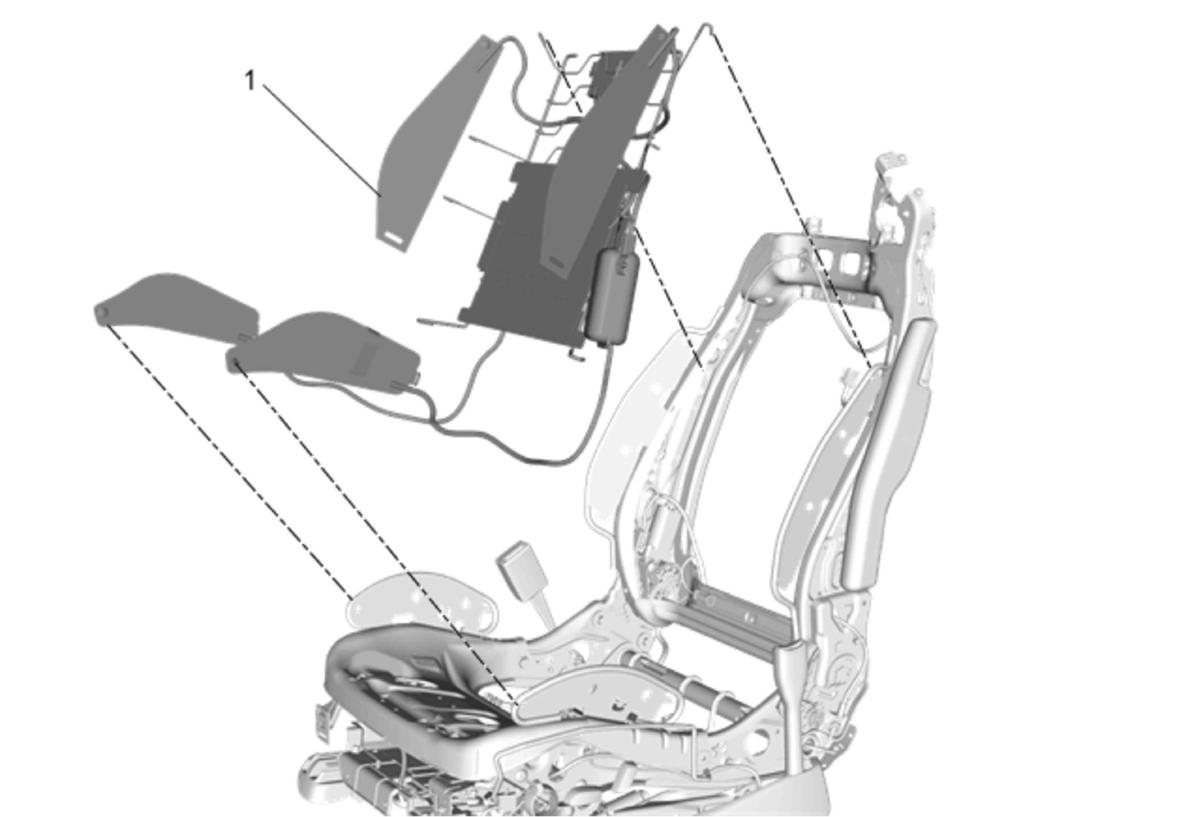

GM4200239Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Front Seat Cushion Cover and Pad Replacement (Without W2E)Front Seat Cushion Cover and Pad Replacement (With W2E)
  2. Front Seat Back Cover and Pad Replacement (Without W2E)Front Seat Back Cover and Pad Replacement (With W2E)
1 Front Seat Lumbar Support Bladder

Procedure

  1. Disconnect all electrical connectors.
  2. Note location and routing of the air hose prior to removal in order to ensure proper reinstallation
