Rear Window Panel Trim Replacement (Without DB3)

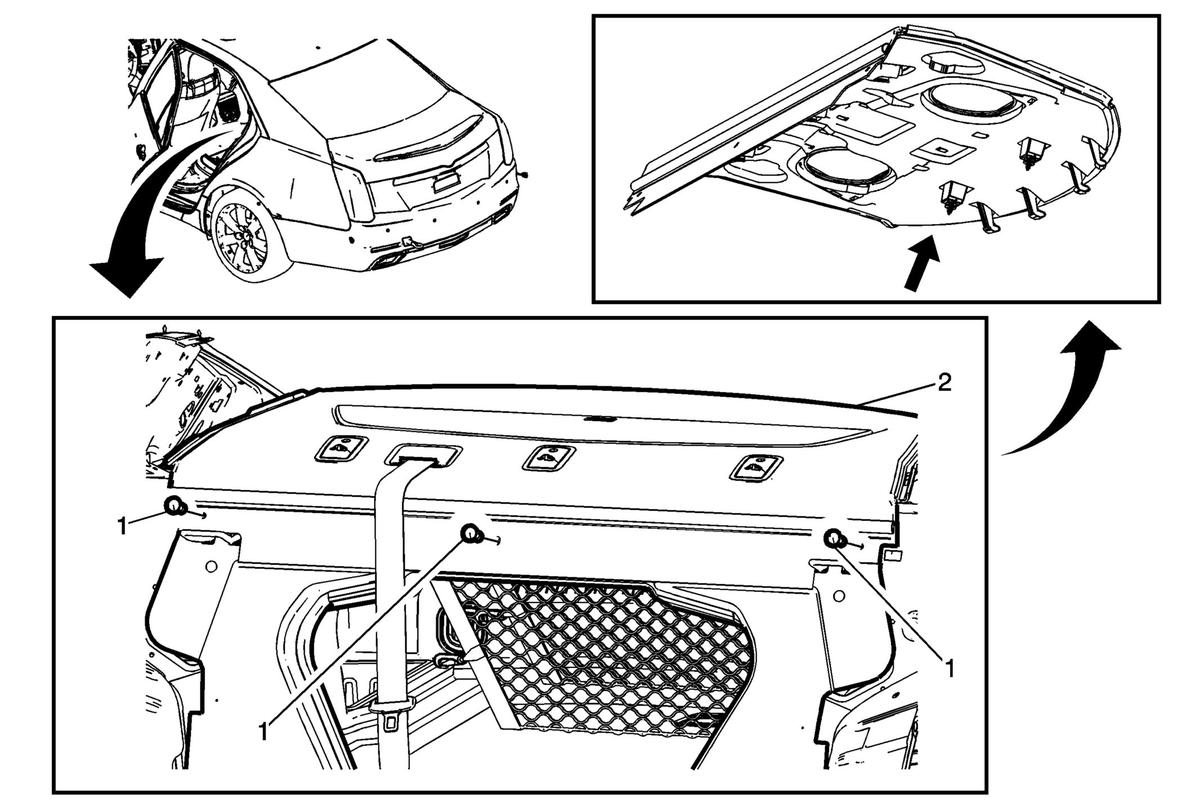

GM3472018
Callout Component Name
Preliminary Procedure
Remove the body side rear window garnish molding. Refer to Body Side Rear Window Garnish Molding Replacement .
1 Rear Window Panel Trim Fastener (Qty: 3)
NOTE:

There are two metal clips on the underside of rear window panel. See view above for location.
2 Rear Window Panel Trim Assembly
Procedure
When replacing the rear window panel trim assembly, transfer all necessary components.
