Instrument Panel Insulator Hole Cover Replacement

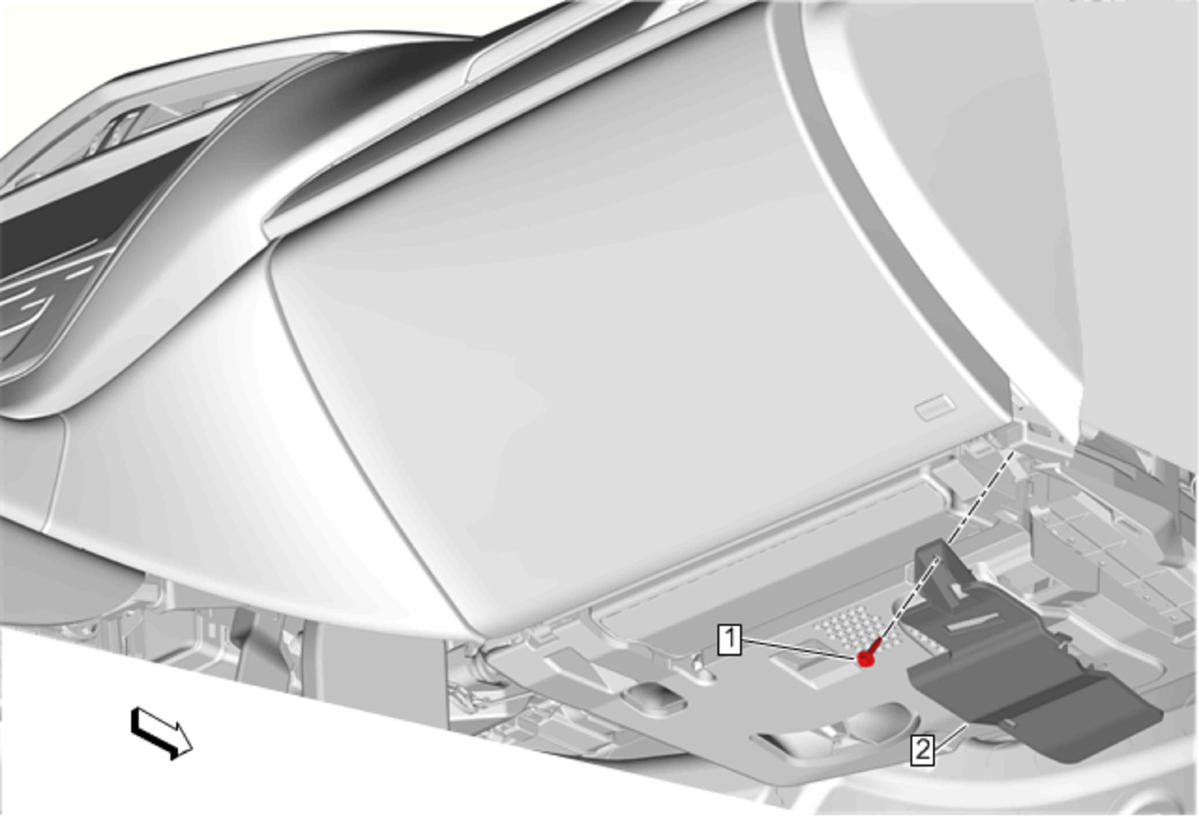

Callout	Component Name
1	Instrument Panel Insulator Bolt CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Instrument Panel Insulator Hole Cover Procedure Unclip the heater and air conditioning remote control module from the instrument panel insulator hole cover without disconnecting the electrical. NOTE: If the HVAC module has been disconnected and the battery has NOT been disconnected, the BROWN J2 connector must be connected last prior to reinstalling the module. Once all the parts are all in place, check and clear all DTC's in the HVAC module.

Callout

Component Name

Instrument Panel Insulator Bolt

CAUTION:

Tighten
2.5 N.m (22 lb in)

Instrument Panel Insulator Hole Cover
Procedure
Unclip the heater and air conditioning remote control module from the instrument panel insulator hole cover without disconnecting the electrical.

NOTE:

If the HVAC module has been disconnected and the battery has NOT been disconnected, the BROWN J2 connector must be connected last prior to reinstalling the module. Once all the parts are all in place, check and clear all DTC's in the HVAC module.
