Instrument Panel Accessory Bracket Replacement

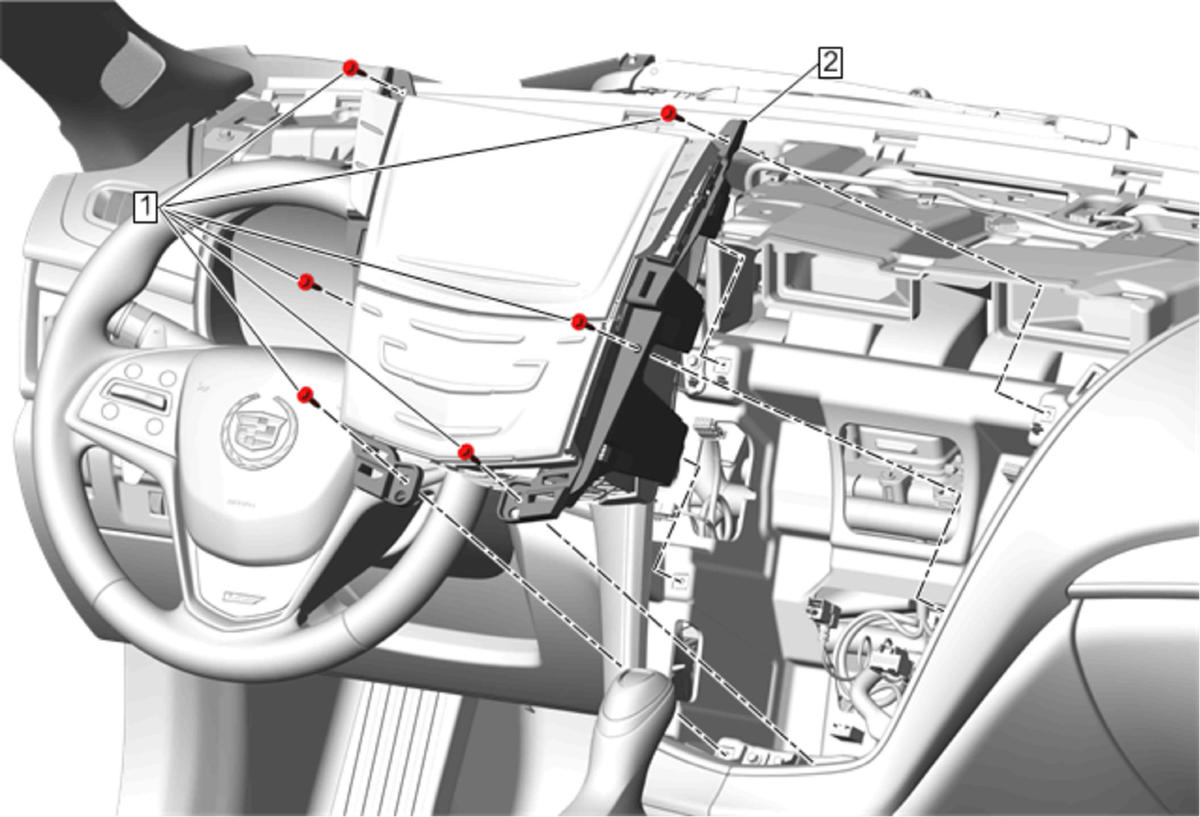

Callout	Component Name
Preliminary Procedure Instrument Panel Trim Plate Replacement Instrument Panel Accessory Center Trim Plate Replacement
1	Instrument Panel Carrier Bracket Bolt [6x] CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Instrument Panel Accessory Bracket Procedure Disconnect all electrical connectors. Radio Control Assembly Replacement Transfer components as necessary.

Callout

Component Name

Preliminary Procedure

Instrument Panel Carrier Bracket Bolt [6x]

CAUTION:

Tighten
2.5 N.m (22 lb in)

Instrument Panel Accessory Bracket

Procedure
