Headlamp Replacement

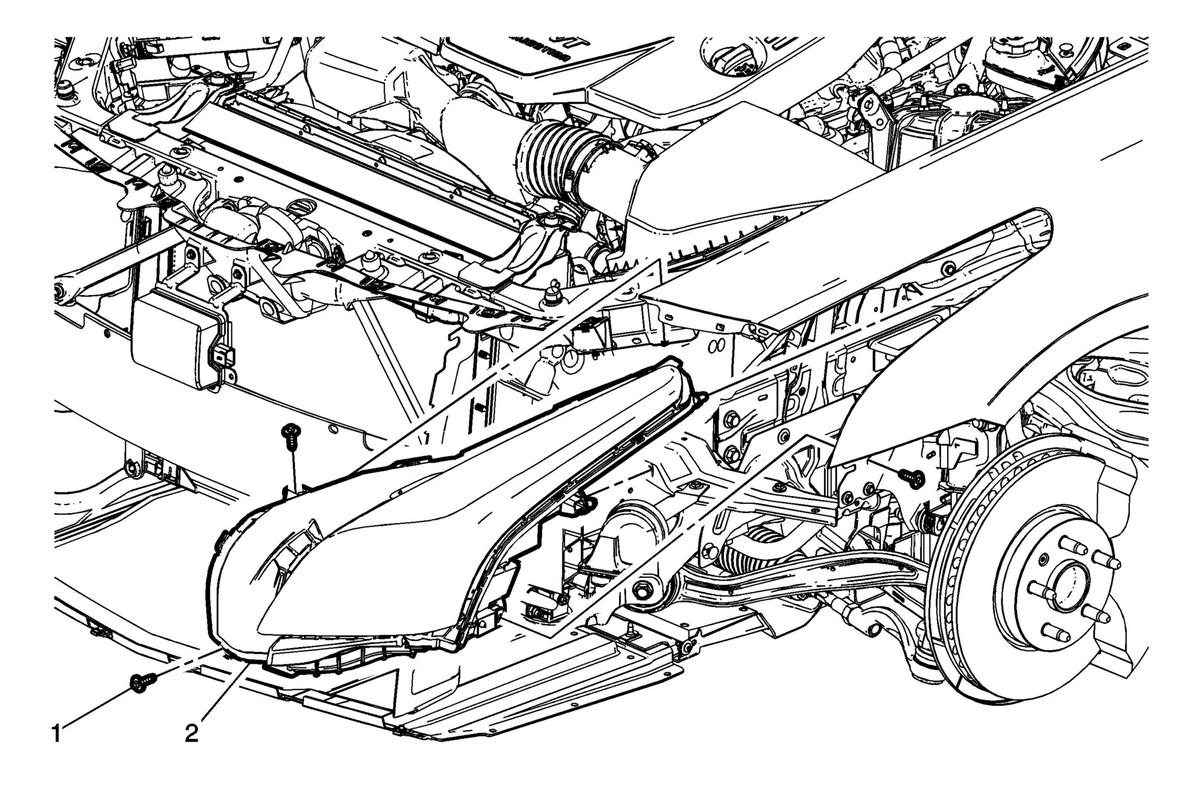

GM3460752

Callout

Component Name

Preliminary Procedure
Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement (CTS)Front Bumper Fascia Replacement (CTS-V) .

1

Headlamp Bolt (Qty: 3)

CAUTION:

Refer to Fastener Caution .

Tighten
2.5 N.m (22 lb in)

2

Headlamp

Procedure

Grasp the headlamp and firmly pull straight back to release the top rearward retainer.
Disconnect the electrical connector.
Aim the headlamp after replacement. Refer to Headlamp Aiming .
