Removal Procedure

Intake Manifold Cover - Remove - Intake Manifold Cover Replacement
Courtesy of GENERAL MOTORS COMPANY

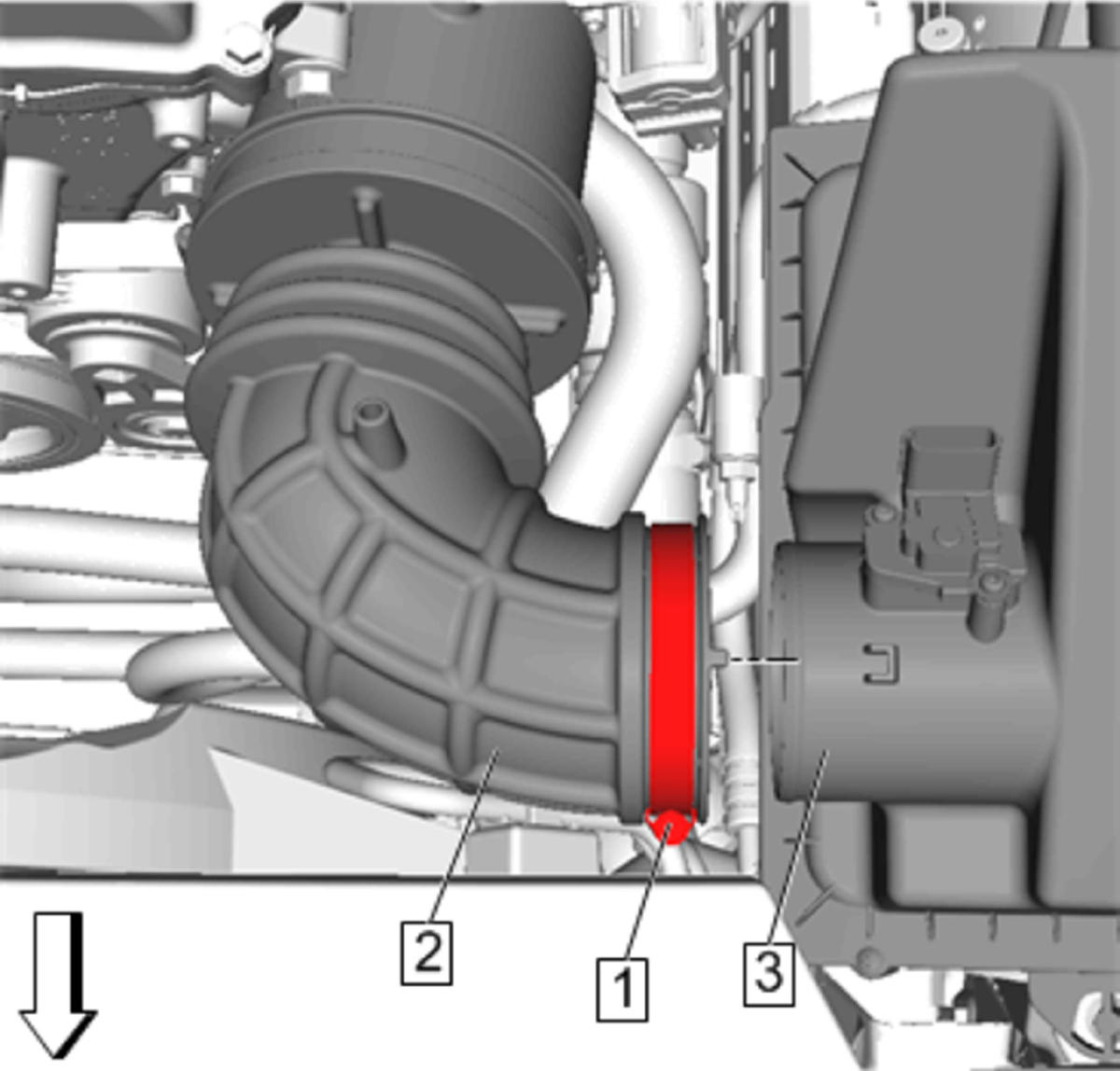

Air Cleaner Outlet Duct Clamp (1) - Loosen
Air Cleaner Outlet Duct (2)@Air Cleaner Assembly (3) - Remove
Courtesy of GENERAL MOTORS COMPANY

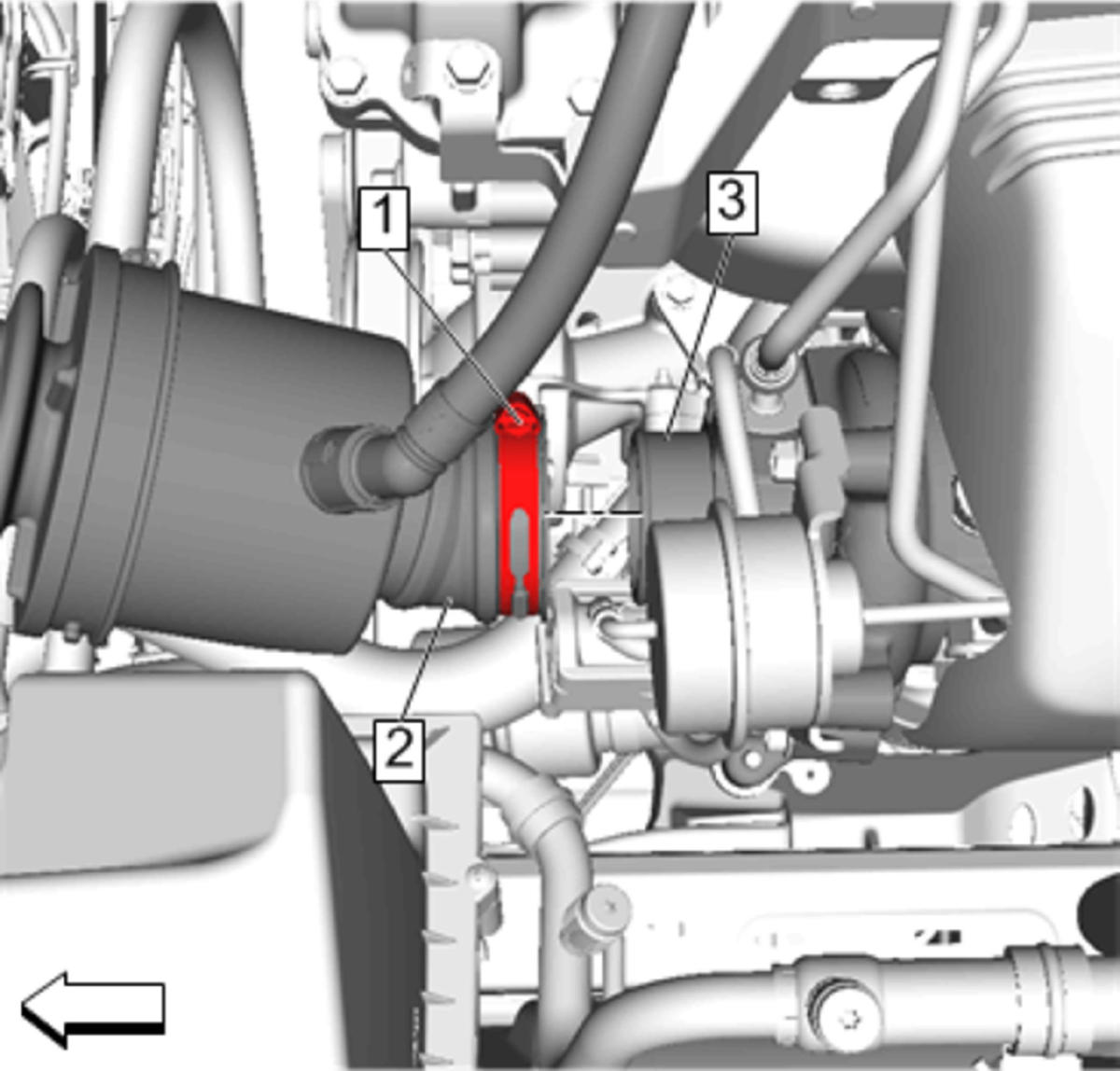

Air Cleaner Outlet Duct Clamp (1) - Loosen
Air Cleaner Outlet Duct (2)@Turbocharger Assembly (3) - Remove
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Due to the PCV tamper-resistant connections, the air cleaner outlet duct must be repositioned during repair. Do NOT damage the tamper-resistant connections.

Positive Crankcase Ventilation Tube Bolt (1) - Remove - Positive Crankcase Ventilation Hose/Pipe/Tube Replacement
Courtesy of GENERAL MOTORS COMPANY

NOTE:
The PCV tube's connections are tamperproof and cannot be disconnected.

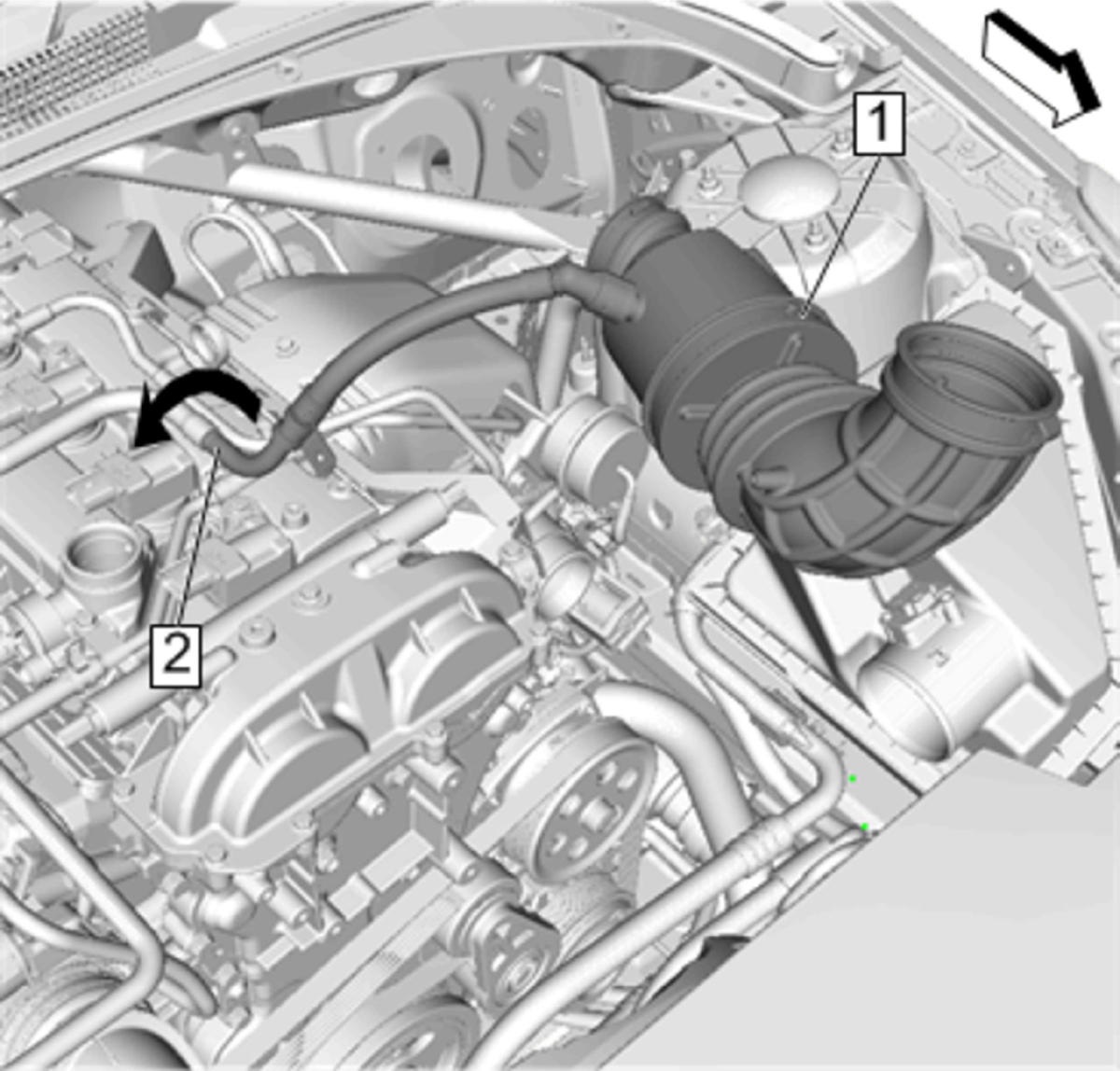

Rotate the air cleaner outlet duct (1)at the PCV tube's pivot joint (2).
Courtesy of GENERAL MOTORS COMPANY

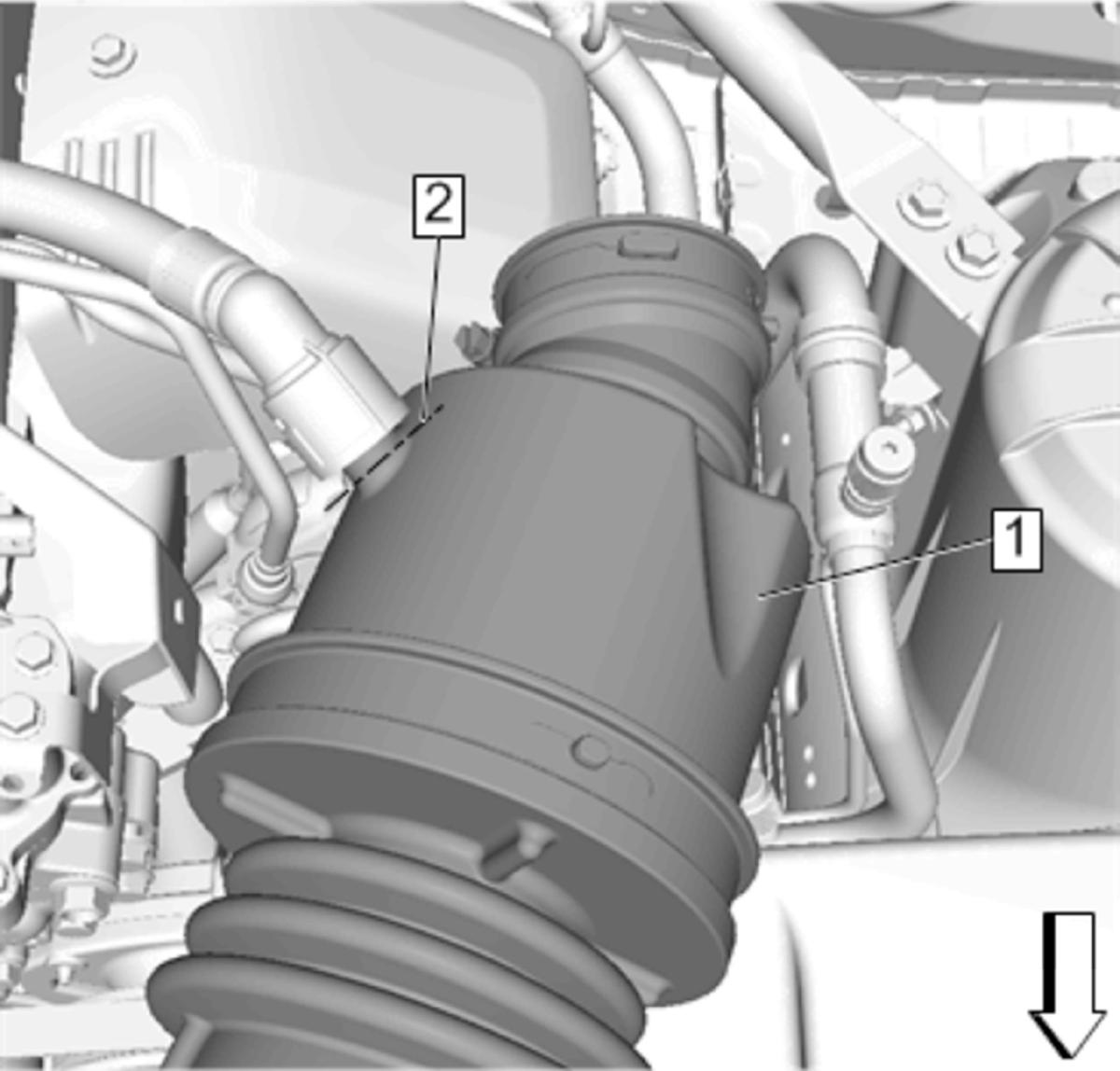

Only when replacing the air cleaner outlet duct (1) with NEW can the air cleaner outlet duct nipple be cut. Use a suitable tool to cut the air cleaner outlet duct nipple marked by the dashed line (2). Remove air cleaner outlet duct from vehicle and discard.
Courtesy of GENERAL MOTORS COMPANY

Using suitable tools, release the PCV valve tangs (1) while pulling the remaining PCV tube (2) from the PCV hose and discard.
