Instrument Panel Lower Airbag Replacement - Passenger Side

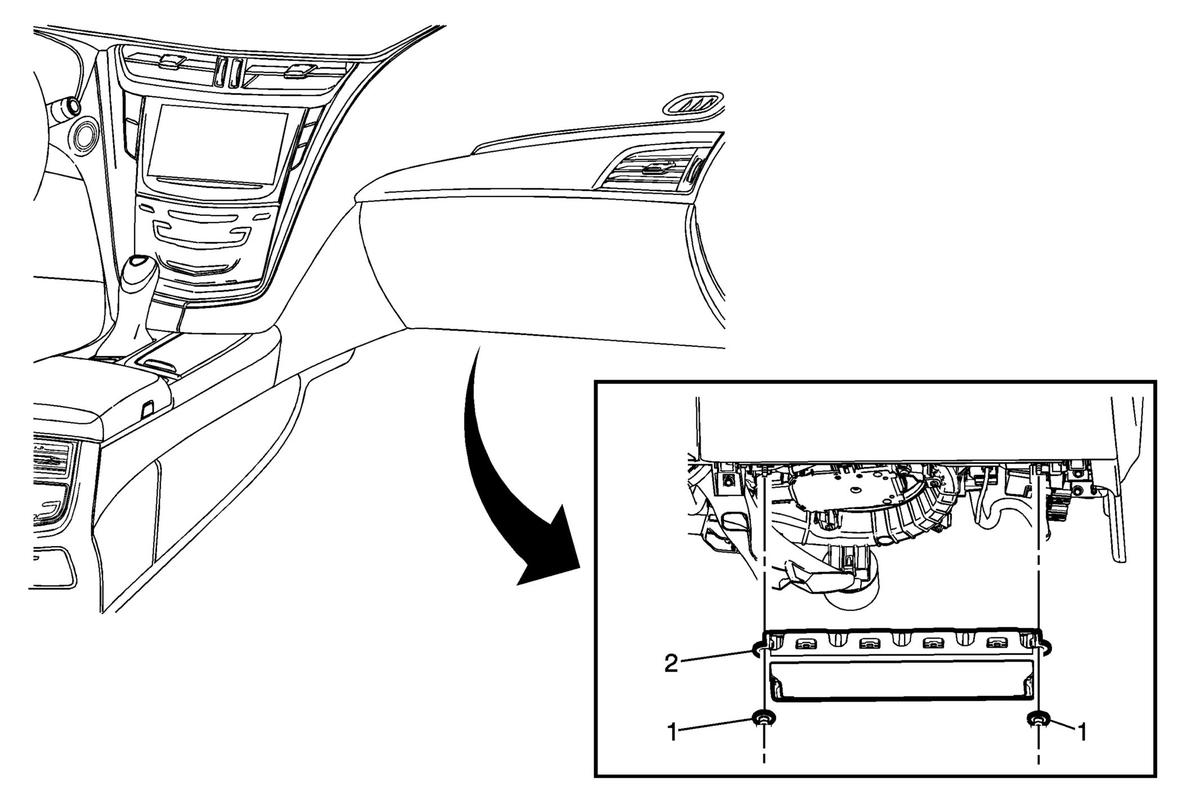

GM3457790

Callout

Component Name

WARNING:

Refer to SIR Inflator Module Handling and Storage Warning .

WARNING:

Refer to SIR Warning .

Preliminary Procedures

Disable the SIR system. Refer to SIR Disabling and Enabling .
Remove the instrument panel lower trim panel insulator - right side. Refer to Instrument Panel Lower Trim Panel Insulator Replacement - Right Side .

1

Instrument Panel Lower Airbag Nut (Qty: 2)

CAUTION:

Refer to Fastener Caution .

Tighten
8 N.m (71 lb in)

2

Instrument Panel Lower Airbag Assembly - Passenger Side

Procedure

Disconnect the airbag electrical connector.
Refer to Inflatable Restraint Module Handling and Scrapping .
Enable the SIR system. Refer to SIR Disabling and Enabling .
