Radiator Air Lower Baffle Replacement (LT4)

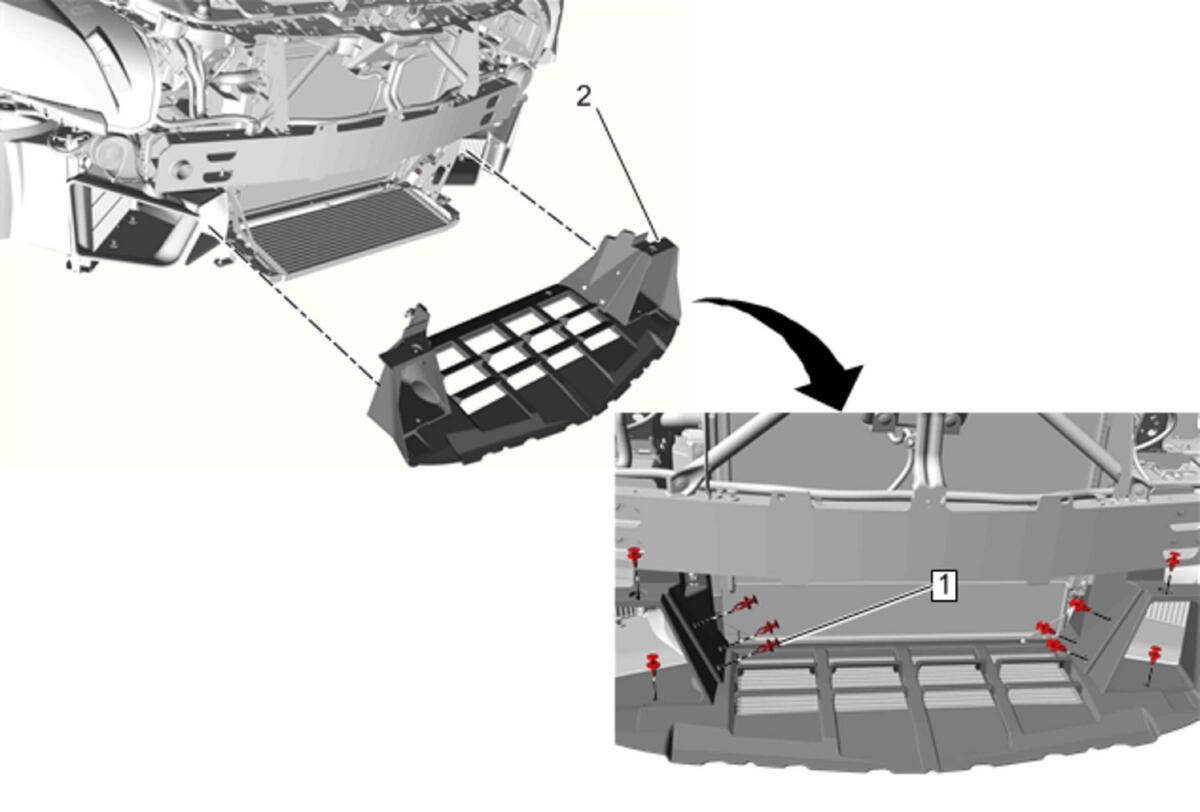

GM4093521Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Front Bumper Fascia Replacement (CTS-V)
1 Push Pin [10x]
2 Radiator Air Lower Baffle - Front

Procedures

  1. Remove the transmission fluid cooler pipe clip from the radiator air lower baffle.
  2. Disconnect the electrical connector.
