Front Seat Back Opening Bezel Replacement (with W2E)

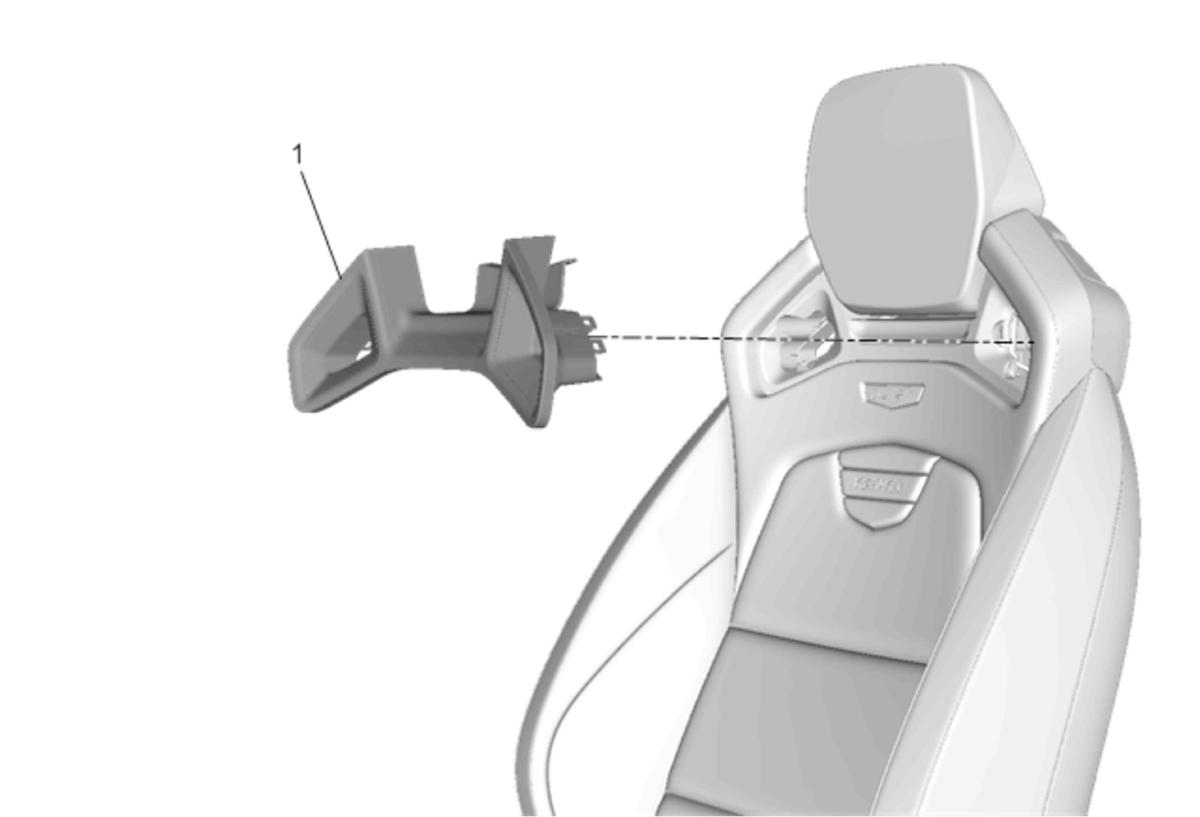

| Callout | Component Name |
|---|---|
| 1 | Front Seat Back Opening Bezel
WARNING:
When removing, handling or installing this component wear protective gloves. The sharp edges on the component may be very sharp and may cause injury. Procedure Disengage the opening bezel by gently pulling on both sides of the bezel at the same time disengaging the retaining clips from the seat back cushion finish panel. |
