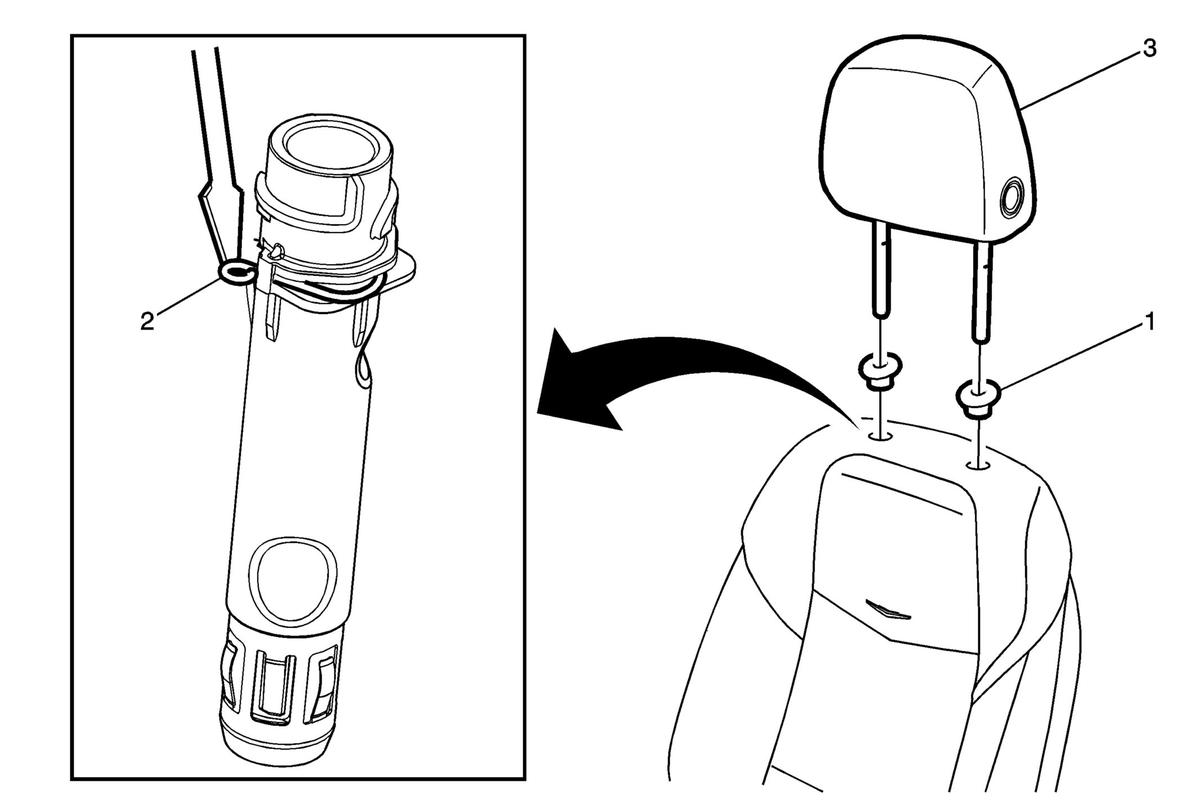

Driver or Passenger Seat Head Restraint Replacement (Without W2E)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Driver or Passenger Seat Head Restraint Cap (Qty: 2) Procedure Raise the headrest to gain access to the head restraint cap. Twist the cap counter clockwise and push the cap upward on the head restraint shaft.
2	Driver or Passenger Seat Head Restraint Clip (Qty: 2) Procedure Using a suitable pointed or flat bladed tool, push the metal clip rearward while pulling upward on the head restraint. NOTE: If the clip becomes dislodged, it may be necessary to remove the guides to reset the clips.
3	Driver or Passenger Seat Head Restraint

Callout

Component Name

Driver or Passenger Seat Head Restraint Cap (Qty: 2)

Procedure

Raise the headrest to gain access to the head restraint cap.
Twist the cap counter clockwise and push the cap upward on the head restraint shaft.

Driver or Passenger Seat Head Restraint Clip (Qty: 2)
Procedure
Using a suitable pointed or flat bladed tool, push the metal clip rearward while pulling upward on the head restraint.

NOTE:

If the clip becomes dislodged, it may be necessary to remove the guides to reset the clips.

Driver or Passenger Seat Head Restraint
