Driver or Passenger Seat Head Restraint Replacement (With W2E)

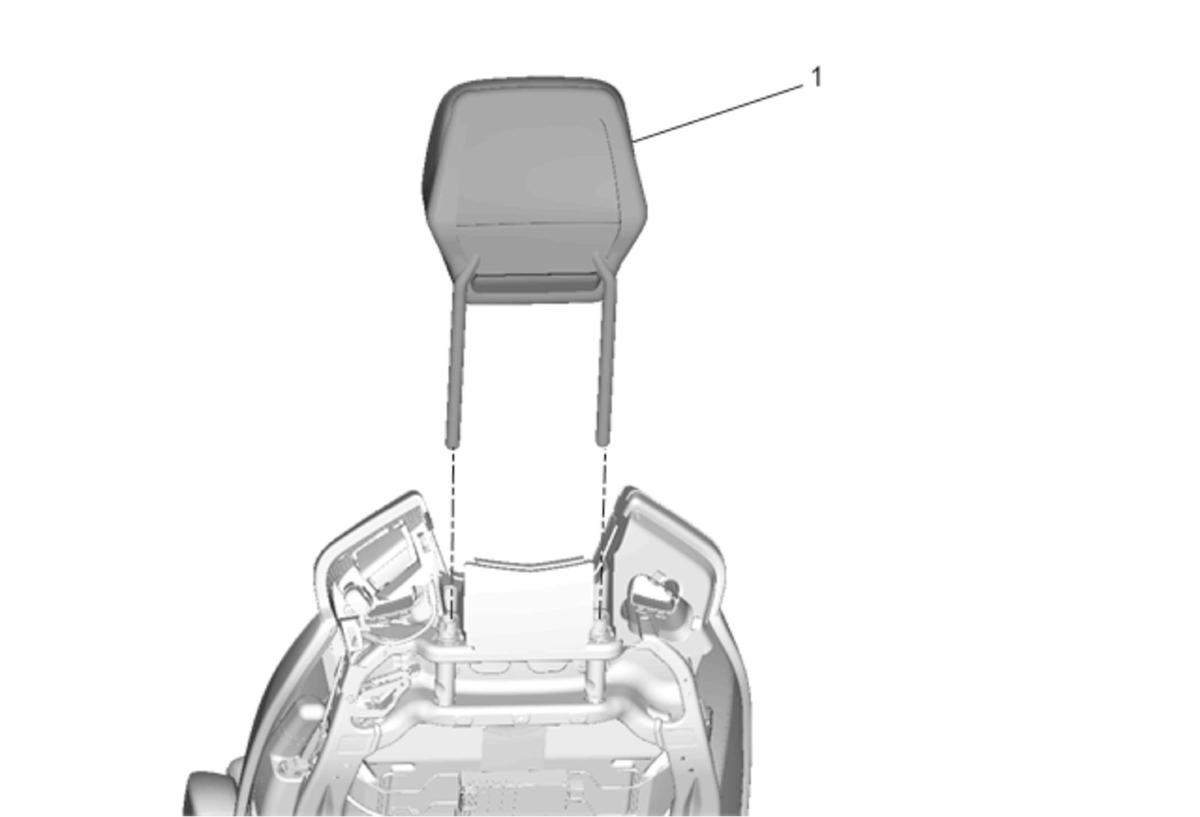

GM4044853Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Front Seat Back Cushion Finish Panel Replacement (Without W2E) Front Seat Back Cushion Finish Panel Replacement (With W2E)
1 Driver or Passenger Seat Head Restraint

Procedure

  1. Release the hook and loop fasteners and J-channel around the head restraint.
  2. Remove the 2 push-in fasteners from the bottom of the front seat back pad support.
  3. Reposition the front seat back pad support (wedge up) for access to the spring type retainers.
  4. Release the spring type retainers with a hook type pic tool.
  5. Pull up to remove the head restraint.
