Front Brake Rotor Cooling Duct Deflector Replacement (V-Series)

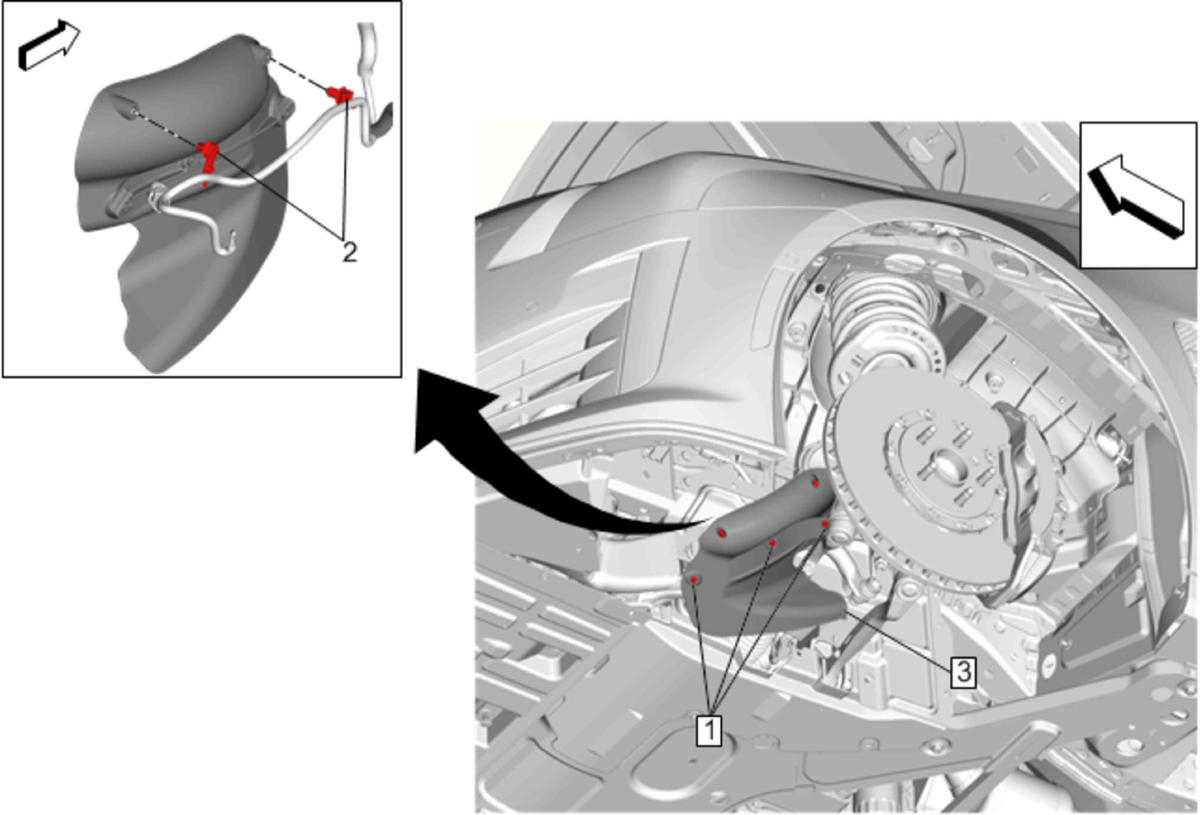

GM4114158
Callout Component Name

Preliminary Procedures

  1. Raise and support the vehicle. Lifting and Jacking the Vehicle (CTS-V)
  2. Turn the front wheels to allow access to the front wheel house area.
1
CAUTION:

Refer to Fastener Caution .

Front Brake Rotor Cooling Duct Deflector Bolt [3X]Tighten 3.3 N.m (29 lb in)
2 Engine Wiring Harness Retainer [2X]
3 Front Brake Rotor Cooling Duct Deflector
