Body Hinge Pillar Garnish Molding Replacement

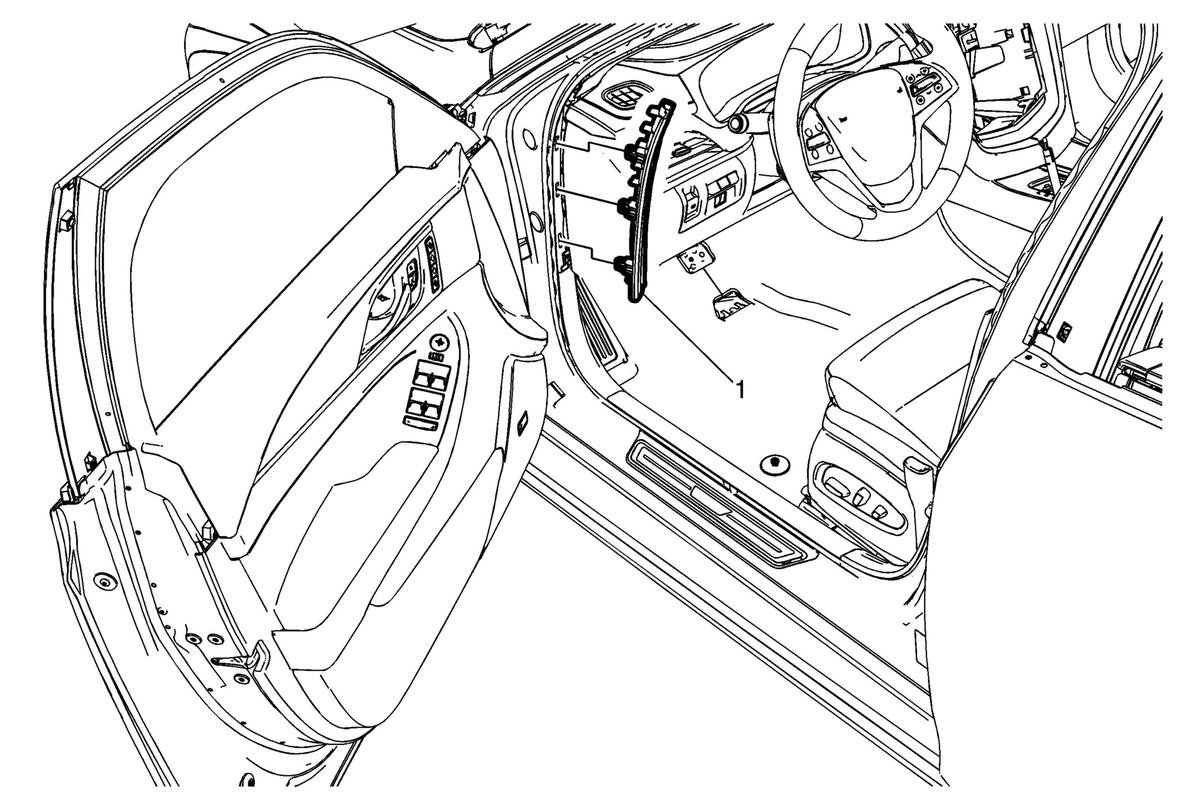

GM3462483
Callout Component Name
Preliminary Procedure
Remove the instrument panel outer trim cover. Refer to Instrument Panel Outer Trim Cover Replacement .
1 Body Hinge Pillar Garnish Molding Assembly
Procedure
Pull toward the rear of the vehicle to disengage integral clips.
