Head Up Display Switch Replacement

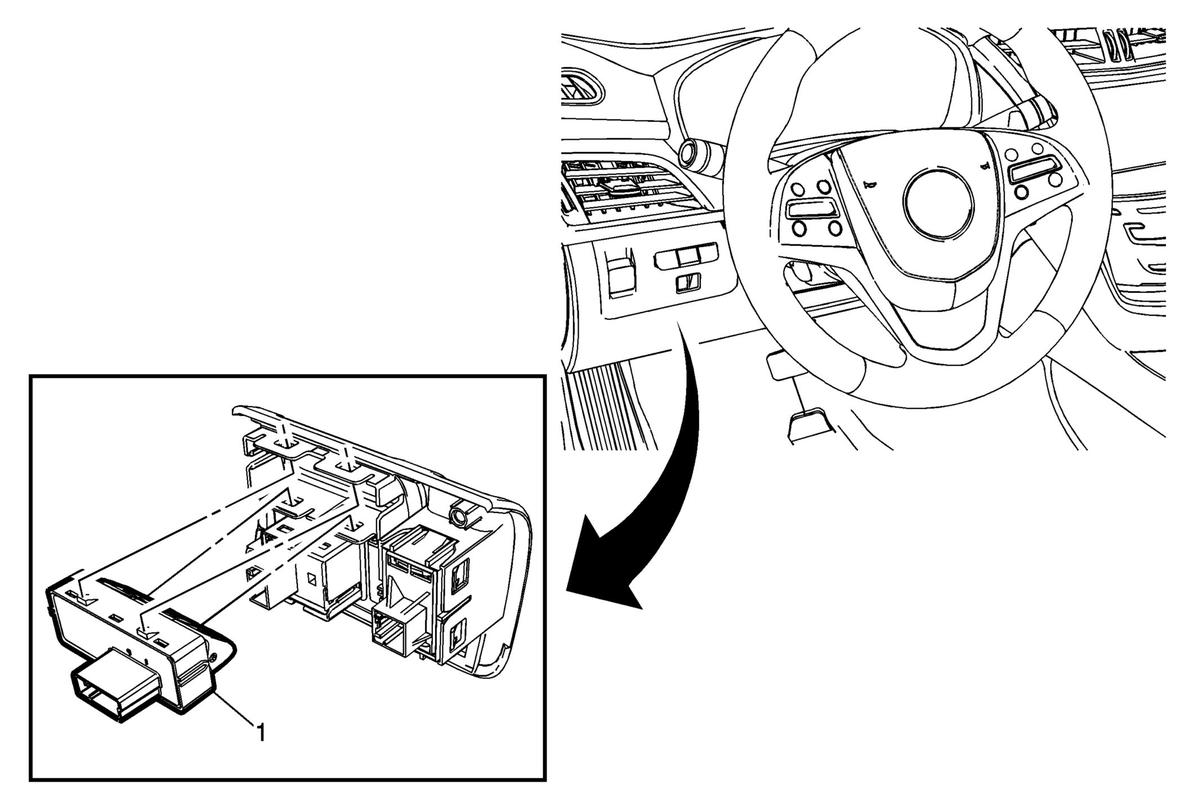

GM3462121Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the instrument panel knee bolster. Refer to Instrument Panel Knee Bolster Replacement .
1 Head Up Display Switch
Procedure
Release tabs on switch to remove from the bezel.
