Ambient Air Temperature Sensor Replacement

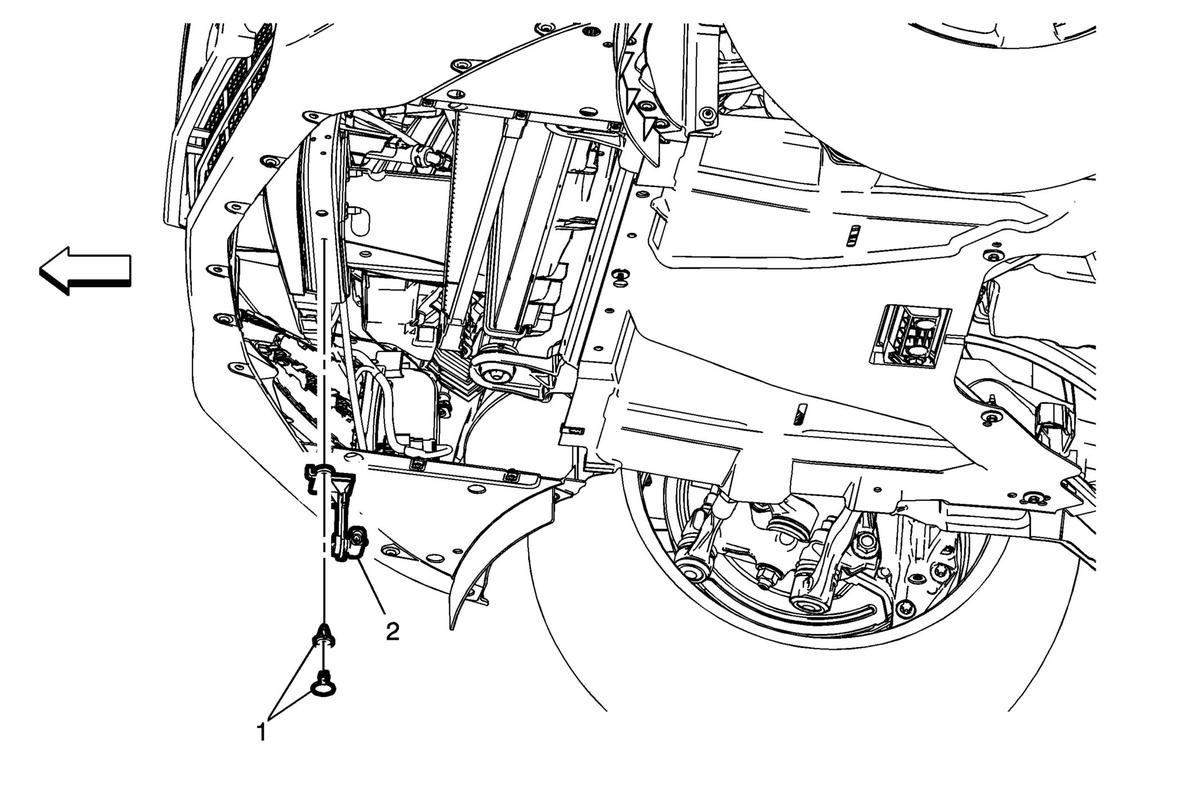

GM3611351Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Lifting and Jacking the Vehicle (CTS)Lifting and Jacking the Vehicle (CTS-V)
  2. Front Bumper Fascia Air Deflector Replacement - CenterFront Bumper Fascia Air Deflector Replacement - Center (CTS-V)
  3. Reposition the radiator air lower baffle, to gain access to the ambient air temperature sensor.
1 Ambient Air Temperature Gauge Sensor Fastener
2 Ambient Air Temperature Gauge Sensor

Procedure

  1. Disconnect the wiring harness retainer.
  2. Disconnect the electrical connector.
