Shock Absorber, Shock Absorber Component, or Spring Replacement (Without F55)

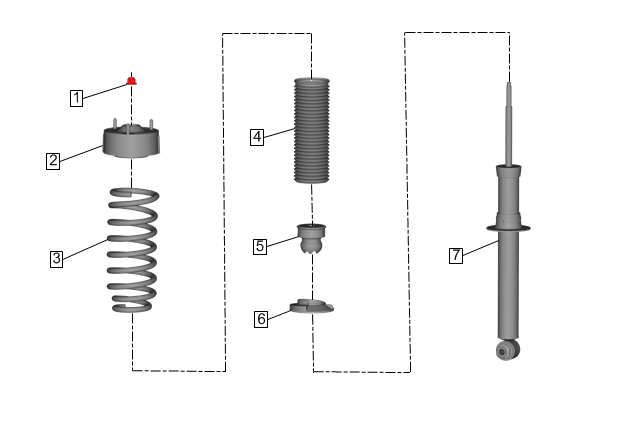

Fig 1: Exploded View Of Shock Absorber, Shock Absorber Component Or Spring (Without F55)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: To prevent personal injury and/or component damage, use the proper tools to support and compress the coil spring prior to removal of the strut shaft nut when removing the coil spring. The coil spring is under extreme pressure and can become a projectile should the spring separate from the strut before all of the tension is relieved. Preliminary Procedure Shock Absorber and Spring Removal and Installation
1	Rear Shock Absorber Nut @ Shock Mount CAUTION: Refer to Fastener Caution . Procedure Use the CH-45400-A compressor to compress the front coil spring. Use the CH-50732 socket to remove and install the front suspension strut mount nut. Tighten 50 N.m (37 lb ft) Special Tools CH-45400-A Strut Spring Compressor CH-50732 Strut Rod Nut Socket, 18 mm Equivalent regional tools: Special Tools
2	Rear Shock Absorber Mount
3	Rear Coil Spring NOTE: Do NOT blemish or modify the coating on the rear coil spring in any manner.
4	Rear Shock Absorber Boot
5	Rear Shock Absorber Bumper
6	Rear Coil Spring Lower Insulator
7	Rear Shock Absorber
