Drive Belt Replacement (LGW)

WARNING: This page is about a different variant/trim than selected.

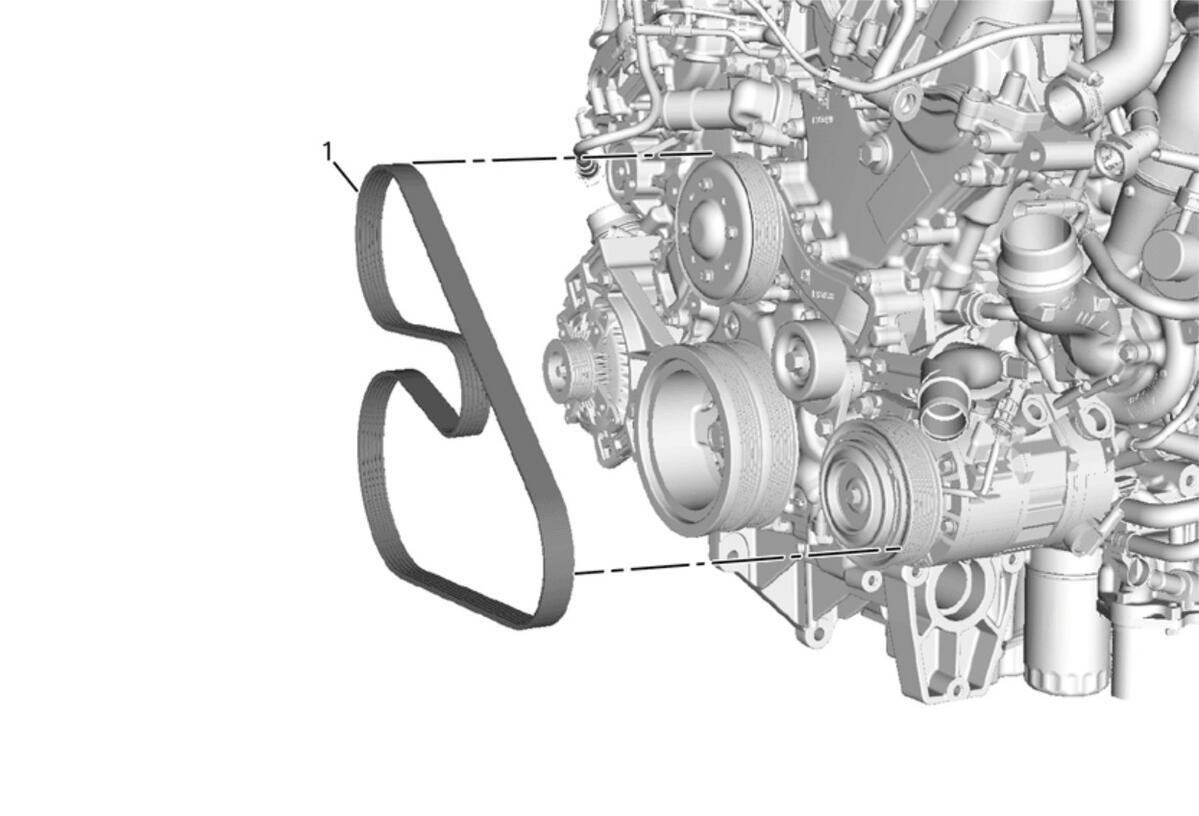

Fig 1: Drive Belt Routing (LGW)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Fan and Generator Belt Replacement
1	Drive Belt Procedure Rotate the drive belt tensioner counter clockwise to release the drive belt tension. Slide the drive belt off of the belt water pump pulley. Slowly release the drive belt tensioner.

Callout

Component Name

Drive Belt

Procedure

Rotate the drive belt tensioner counter clockwise to release the drive belt tension.
Slide the drive belt off of the belt water pump pulley.
Slowly release the drive belt tensioner.
