X700 Left Rear Door Harness to Body Harness

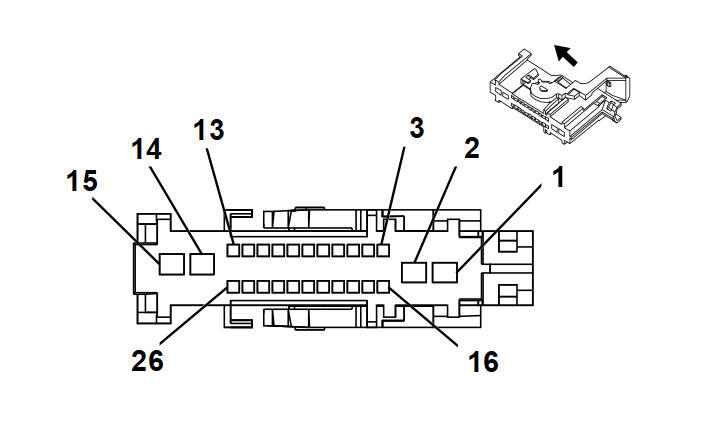

GM3530739Courtesy of GENERAL MOTORS COMPANY

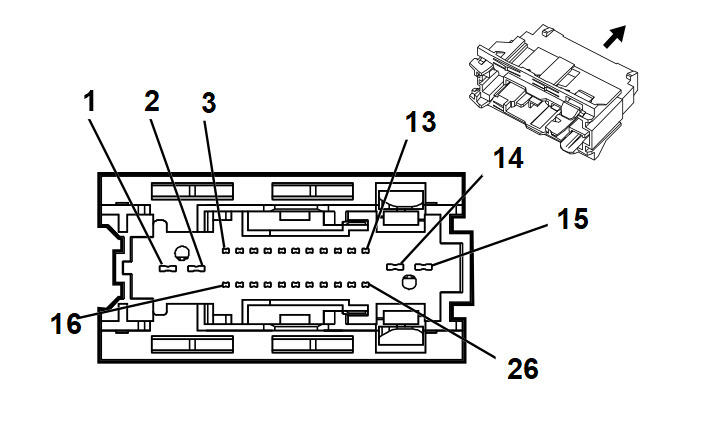

GM3530694Courtesy of GENERAL MOTORS COMPANY
Connector Part Information
  • Harness Type: Left Rear Door
  • OEM Connector: 13981046
  • Service Connector: Service by Harness - See Part Catalog
  • Description: 26-Way F 1.2, 2.8 OCS Series (L-GY)
 Connector Part Information
  • Harness Type: Body
  • OEM Connector: 15531019
  • Service Connector: 13591678
  • Description: 26-Way M 1.2, 2.8 OCS Series (GY)
Terminal Part Information

Terminal Type ID Terminated Lead Diagnostic Test Probe Terminal Removal Tool Service Terminal Tray Name Core Crimp Insulation Crimp
I Not Required J-35616-16 (LT GN) No Tool Required Not Required Not Required Not Required Not Required
II Not Required J-35616-35 (VT) No Tool Required Not Required Not Required Not Required Not Required
III 13575823 J-35616-5 (PU) J-38125-11A 7114-4110-02 Yazaki 9 E C
IV 13575823 J-35616-5 (PU) J-38125-11A 7114-4111-02 Yazaki 9 C A
V 13575824 J-35616-5 (PU) J-38125-11A 7114-4112-02 Yazaki 9 C D
VI 19333310 J-35616-65B (LT BU) J-38125-12A Not Available Not Available Not Available Not Available
VII 19333310 J-35616-65B (LT BU) J-38125-553 Not Available Not Available Not Available Not Available
VIII 19369190 J-35616-65B (LT BU) J-38125-553 1438299-4 Lear 28 E E
IX 19369190 J-35616-65B (LT BU) J-38125-553 Not Available Not Available Not Available Not Available
Pin Size Color Circuit Terminal Type ID Option Function Pin Size Color Circuit Terminal Type ID Option
1 2.5 RD/BU 1842 II - Battery Positive Voltage 1 2.5 RD/BU 1842 V -
2 2.5 BK 2350 II - Ground 2 2.5 BK 2350 V -
3 - - - - - Not Occupied 3 - - - - -
4 0.75 BN/YE 294 I - Door Lock Actuator Unlock Control 4 0.75 BN/YE 294 IX -
5 0.5 VT/GY 5310 I - Rear Sunshade Switch Express Signal 5 0.35 VT/GY 5310 VI -
6 - - - - - Not Occupied 6 - - - - -
7 0.5 WH/YE 7557 I - LED Ambient Lighting Control 1 7 0.35 WH/YE 7557 VI -
8 0.35 BN/YE 6157 I - Left Rear Door Handle Switch Signal 8 0.35 BN/YE 6157 VI -
9 0.35 RD/BN 7540 I - Battery Positive Voltage 9 0.35 RD/BN 7540 VI -
10 0.35 GN/WH 4115 I - Local Interconnect Network Serial Data Bus 15 10 0.35 GN/WH 4115 VI -
11 - - - - - Not Occupied 11 - - - - -
12 0.35 GN/GY 6135 I - Local Interconnect Network Serial Data Bus 4 12 0.35 GN/GY 6135 VI -
13 0.5 YE/GN 5308 I - Rear Sunshade Switch Open Signal 13 0.35 YE/GN 5308 VI -
14 0.5
0.75		 GN/BK
GN/BK		 116
116		 II
II		 UQA
UQS/UQH		 Left Rear Speaker Signal (-)
Left Rear Speaker Signal (-)		 14 0.5
1
0.5		 GN/BK
GN/BK
GN/BK		 116
116
116		 III
IV
III		 UQS/UQA
UQH
UQS/UQA
15 0.5
0.75		 GN
GN		 199
199		 II
II		 UQA
UQS/UQH		 Left Rear Speaker Control (+)
Left Rear Speaker Control (+)		 15 0.5
1		 GN
GN		 199
199		 III
IV		 UQS/UQA
UQH
16 0.35 GY/GN 5996 I - Driver Outside Rear View Mirror Puddle Lamp Control 16 0.35 GY/GN 5996 VI -
17 0.5 YE 6817 I - LED Backlight Dimming Control 17 0.35 YE 6817 VI -
18 - 19 - - - - - Not Occupied 18 - 19 - - - - -
20 0.35 VT/BN 616 I - Memory Seat Switch Signal 2 20 0.35 VT/BN 616 VII -
21 - - - - - Not Occupied 21 - - - - -
22 0.5 GY 157 I - Interior Lamp Control 22 0.5 GY 157 VIII -
23 - 24 - - - - - Not Occupied 23 - 24 - - - - -
25 0.75 GY 295 I - Door Lock Actuator Lock Control 25 0.75 GY 295 IX -
26 0.75 BN 5910 I - Door Double Lock Actuator Lock Control 26 0.75 BN 5910 IX -
