X390 Left Rear Seat Cushion Harness to Left Rear Seat Cushion Temperature Control Module Harness (AQ9)
 Courtesy of GENERAL MOTORS COMPANY
|
 Courtesy of GENERAL MOTORS COMPANY
|

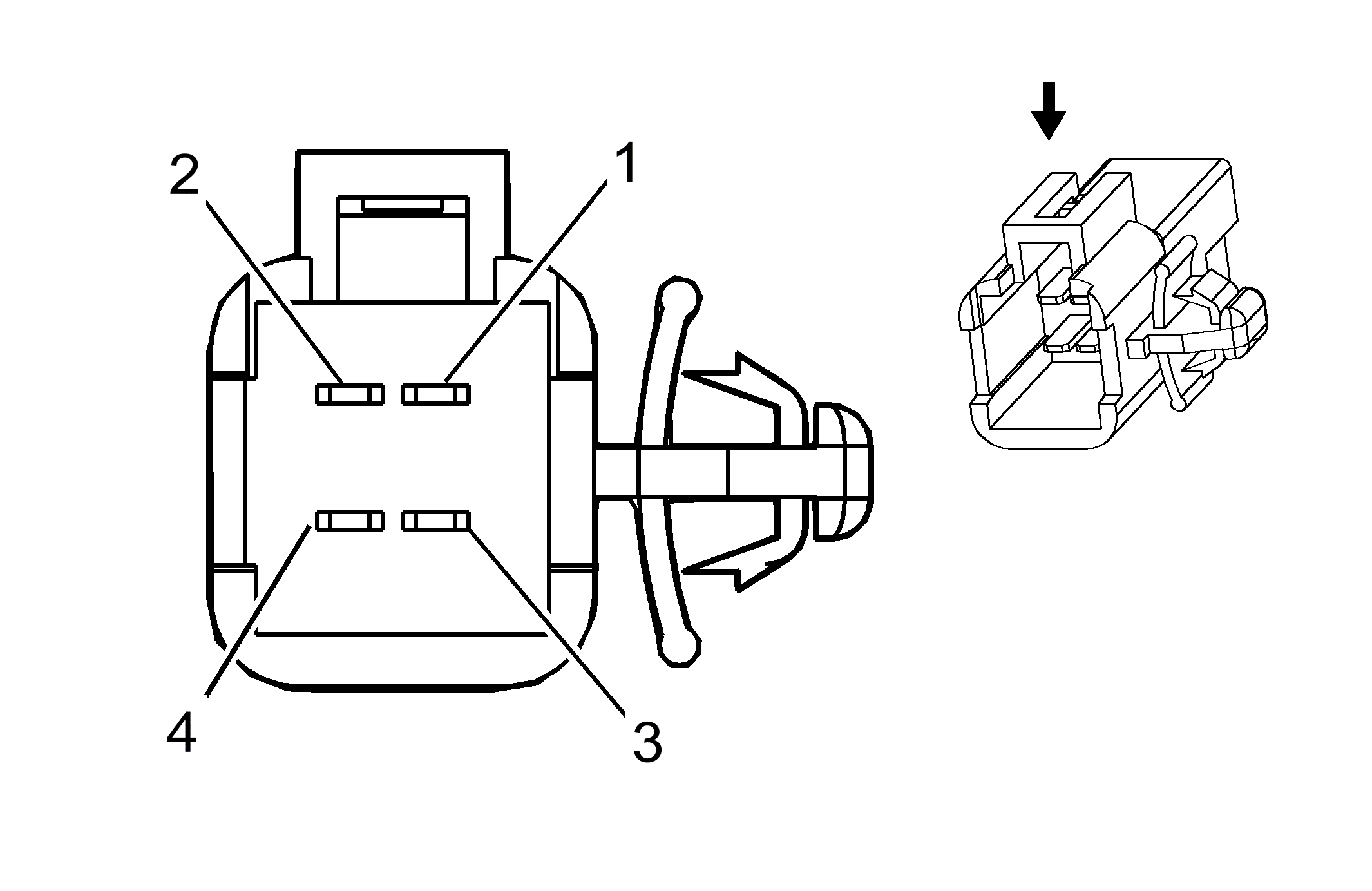

Connector Part Information
- Harness Type: Left Rear Seat Cushion
- OEM Connector: Not Available
- Service Connector: Service by Harness - See Part Catalog
- Description: 4-Way F (BK)
|

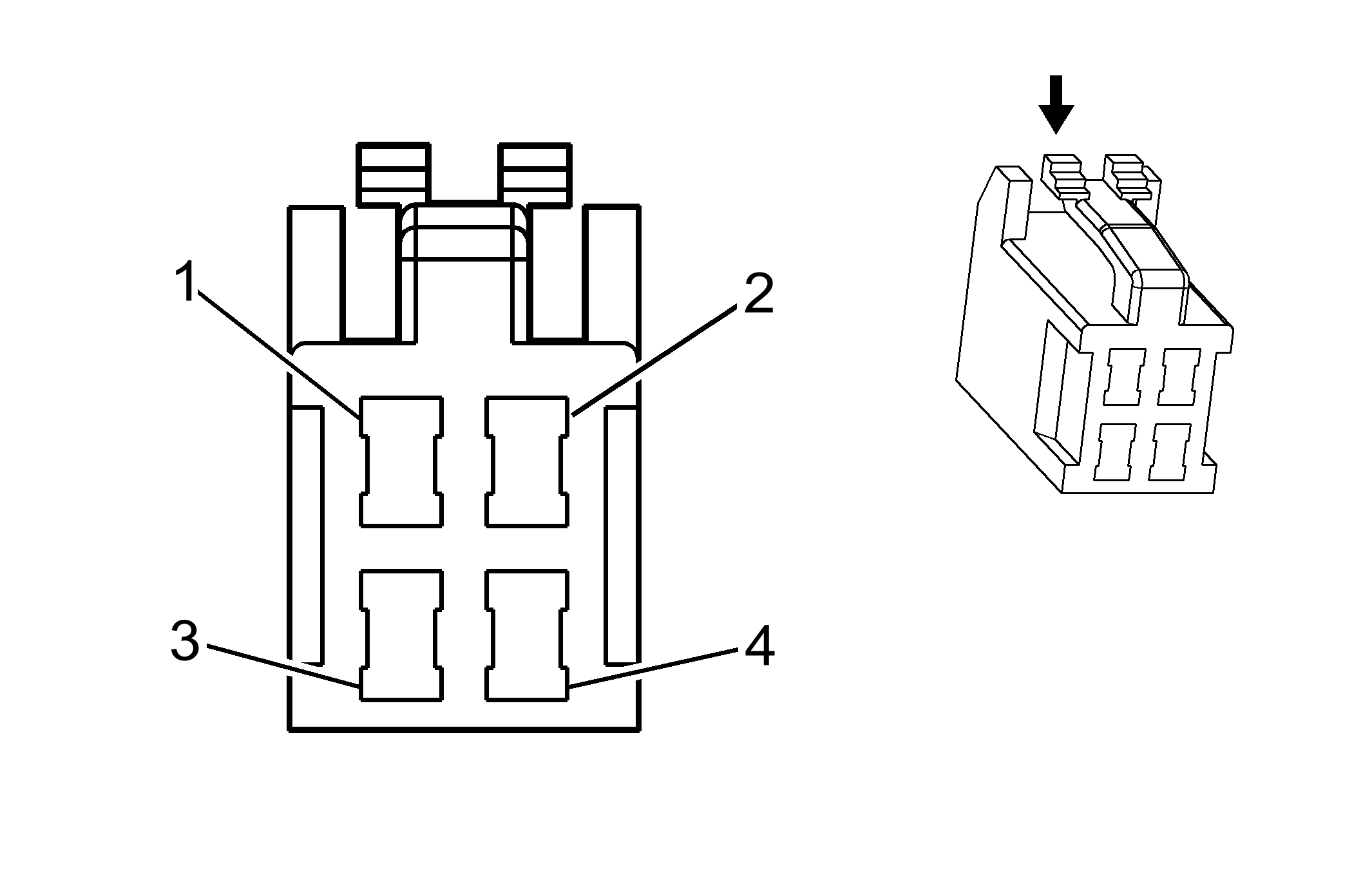

Connector Part Information
- Harness Type: Left Rear Seat Cushion Temperature Control Module
- OEM Connector: Not Available
- Service Connector: Service by Harness - See Part Catalog
- Description: 4-Way M (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
No Tool Required |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| II |
Not Required |
No Tool Required |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
Function |
Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
| 1 |
0.5 |
BK |
2350 |
I |
- |
Ground |
1 |
0.5 |
BK |
2350 |
II |
- |
| 2 |
0.35 |
VT/BK |
739 |
I |
- |
Run/Crank Ignition 1 Voltage |
2 |
0.35 |
YE |
739 |
II |
- |
| 3 |
- |
- |
- |
- |
- |
Not Occupied |
3 |
- |
- |
- |
- |
- |
| 4 |
0.35 |
GN |
3308 |
I |
- |
Left Rear Seat Back Climate Control Fan Speed Control |
4 |
0.35 |
WH |
3308 |
II |
- |
