X336 Body Harness to Floor Console Harness

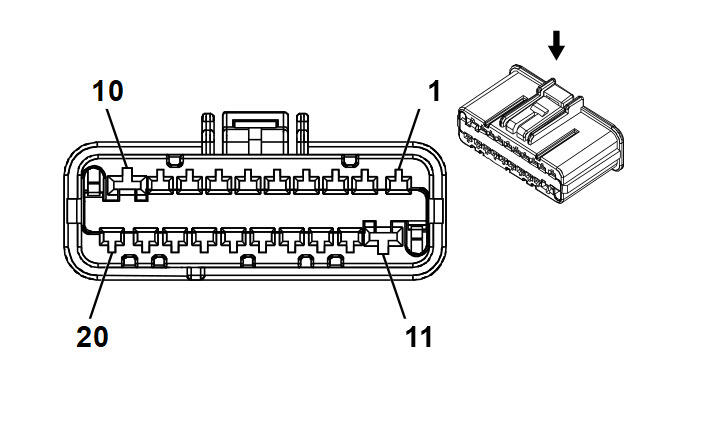

GM4231574Courtesy of GENERAL MOTORS COMPANY

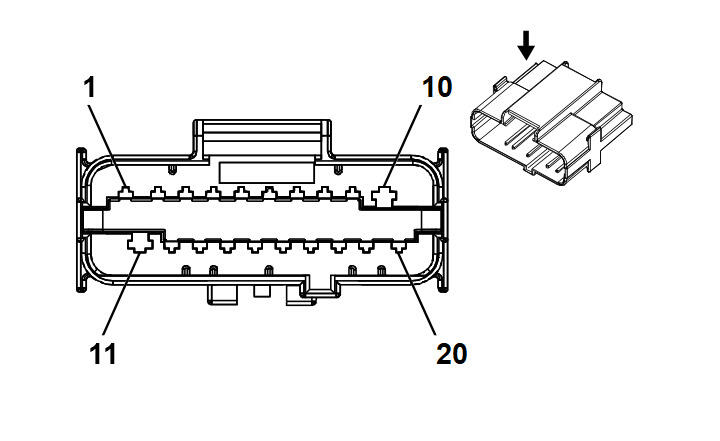

GM4253767Courtesy of GENERAL MOTORS COMPANY
Connector Part Information
  • Harness Type: Body
  • OEM Connector: 15533831
  • Service Connector: 13580849
  • Description: 20-Way F 1.5, 2.8 Series (GY)
 Connector Part Information
  • Harness Type: Floor Console
  • OEM Connector: 15532144
  • Service Connector: Service by Harness - See Part Catalog
  • Description: 20-Way M 1.5, 2.8 Series (GY)
Terminal Part Information

Terminal Type ID Terminated Lead Diagnostic Test Probe Terminal Removal Tool Service Terminal Tray Name Core Crimp Insulation Crimp
I 13575868 J-35616-2A (GY) J-38125-217 Not Available Not Available Not Available Not Available
II 19300432 J-35616-2A (GY) J-38125-217 Not Available Not Available Not Available Not Available
III 19300635 J-35616-2A (GY) J-38125-217 Not Available Not Available Not Available Not Available
IV Not Required J-35616-3 (GY) No Tool Required Not Required Not Required Not Required Not Required
Pin Size Color Circuit Terminal Type ID Option Function Pin Size Color Circuit Terminal Type ID Option
1 - - - - - Not Occupied 1 - - - - -
2 0.5 RD/BU 840 II - Battery Positive Voltage
Battery Positive Voltage		 2 0.5 RD/BU 840 IV -
3 0.35
0.5		 BARE
BARE		 5345
5345		 III
III		 ASG
-ASG		 Auxiliary Audio Low Reference 1
Auxiliary Audio Low Reference 1		 3 0.5 BARE 5345 IV -
4 0.35 BN 3374 I ASG Auxiliary Audio Common Signal 2 4 0.35 BN 3374 IV -
5 0.35 YE 2059 I ASG Left Auxiliary Audio Signal 1 5 0.35 YE 2059 IV -
6 0.35 WH 2058 III - Right Auxiliary Audio Signal 1 6 0.35 WH 2058 IV -
7 0.35 BN 9519 III - - 7 0.35 BN 9519 IV -
8 0.35 GY 4109 I - Driver Mode Switch 5V Reference 8 0.35 GY 4109 IV -
9 0.35 WH/VT 4108 I - Driver Mode Switch Signal 9 0.35 WH/VT 4108 IV -
10 - 11 - - - - - Not Occupied 10 - 11 - - - - -
12 0.35 BK/YE 645 I - Sensor Low Reference 12 0.5 BK/YE 645 IV -
13 0.35 BN/BK 405 I - Lower Air Temperature Sensor Signal
Lower Air Temperature Sensor Signal		 13 0.35 BN/BK 405 IV -
14 0.35 GN/YE 7066 I - Entertainment Remote Enable Signal 14 0.35 GN/YE 7066 IV -
15 0.35 BN/WH 1218 I - Upper Mode Valve Motor Control
Upper Mode Valve Motor Control		 15 0.35 BN/WH 1218 IV -
16 0.35 YE/BK 3185 I - Mode Door Stepper Motor Rear Control 1
Mode Door Stepper Motor Rear Control 1		 16 0.35 YE/BK 3185 IV -
17 0.35 GN/BK 3186 I - Mode Door Stepper Motor Rear Control 2 17 - - - - -
18 0.35 BU/BK 3187 I - Mode Door Stepper Motor Rear Control 3 18 0.35 BU/BK 3187 IV -
19 0.35 GY/BK 3188 I - Mode Door Stepper Motor Rear Control 4 19 0.35 GY/BK 3188 IV -
20 - - - - - Not Occupied 20 - - - - -
