X177 Transmission Case Harness to Speed Sensor Assembly Harness (MRD)
 Courtesy of GENERAL MOTORS COMPANY
|
 Courtesy of GENERAL MOTORS COMPANY
|

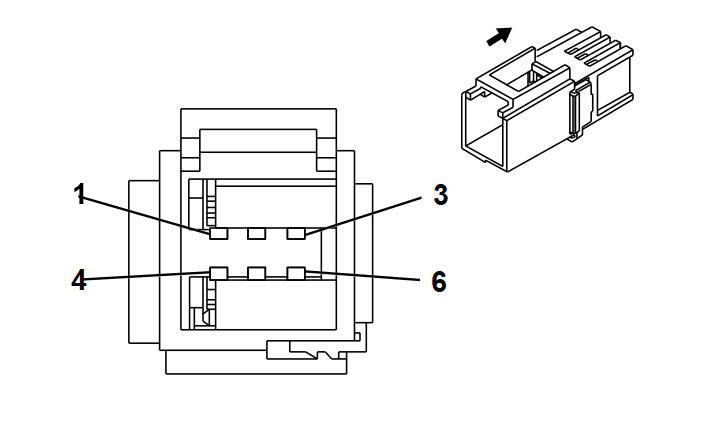

Connector Part Information
- Harness Type: Transmission Case
- OEM Connector: 13582377
- Service Connector: Service by Harness - See Part Catalog
- Description: 6-Way F 1.2 OCS Series (NA)
|

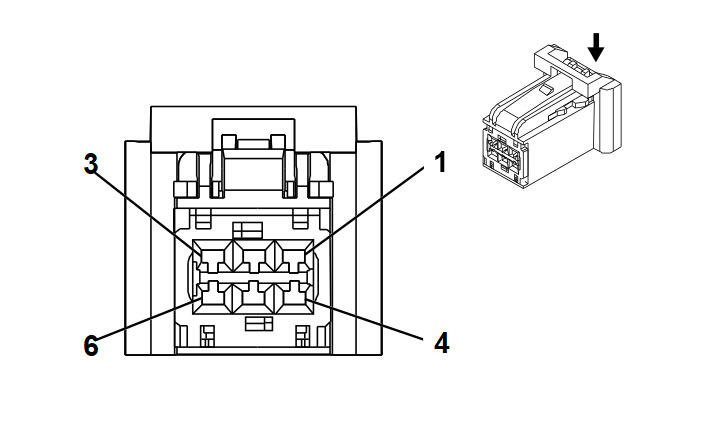

Connector Part Information
- Harness Type: Transmission Speed Sensor
- OEM Connector: 13582378
- Service Connector: Service by Harness - See Part Catalog
- Description: 6-Way M 0.64 II Series (GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
No Tool Required |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| II |
Not Required |
No Tool Required |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
Function |
Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
| 1 |
0.5 |
GY/BU |
6358 |
I |
- |
Output Speed Signal |
1 |
0.5 |
GY/BU |
6358 |
II |
- |
| 2 |
0.5 |
YE/GN |
4170 |
I |
- |
Transmission Position Sensor B 9V Reference |
2 |
0.5 |
YE/GN |
4170 |
II |
- |
| 3 |
0.5 |
YE/GN |
4170 |
I |
- |
Transmission Position Sensor B 9V Reference |
3 |
0.5 |
YE/GN |
4170 |
II |
- |
| 4 |
0.5 |
YE/BU |
4171 |
I |
- |
Transmission Position Sensor A 9V Reference |
4 |
0.5 |
YE/BU |
4171 |
II |
- |
| 5 |
0.5 |
GN/YE |
6353 |
I |
- |
Input Speed Signal |
5 |
0.5 |
GN/YE |
6353 |
II |
- |
| 6 |
0.5 |
GN/VT |
4510 |
I |
- |
Transmission Intermediate Speed Signal |
6 |
0.5 |
GN/VT |
4510 |
II |
- |
