X176 Transmission Case Harness to Transmission Control Harness (M5N/M5X)
 Courtesy of GENERAL MOTORS COMPANY
|
 Courtesy of GENERAL MOTORS COMPANY
|

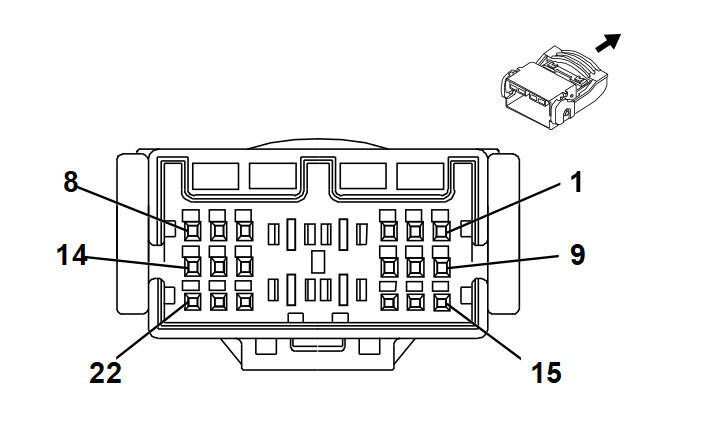

Connector Part Information
- Harness Type: Transmission Case
- OEM Connector: 1897543-1
- Service Connector: Service by Harness - See Part Catalog
- Description: 22-Way F 0.64 Micro-Quadlock, 2.8 Micro-Power Series (NA)
|

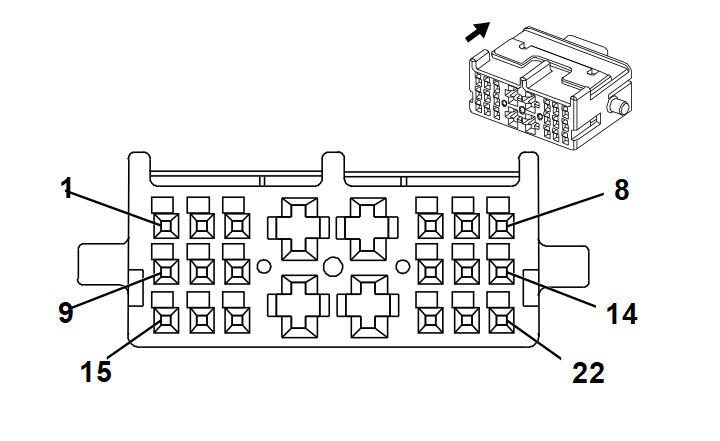

Connector Part Information
- Harness Type: Transmission Control
- OEM Connector: 1897540-1
- Service Connector: Service by Harness - See Part Catalog
- Description: 22-Way M 0.64 Micro-Quadlock, 2.8 Micro-Power Series (NA)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-35 (VT) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| II |
Not Required |
J-35616-64B (LT BU) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| III |
Not Required |
J-35616-5 (PU) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| IV |
Not Required |
J-35616-65B (LT BU) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
Function |
Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
| 1 |
0.5 |
GN/WH |
6380 |
II |
- |
TCC On/Off Solenoid A Control |
1 |
0.5 |
GN/WH |
6380 |
IV |
- |
| 2 |
0.5 |
VT/WH |
5981 |
II |
- |
PRNDL A Signal |
2 |
0.5 |
VT/WH |
5981 |
IV |
- |
| 3 |
0.5 |
GY/BN |
5982 |
II |
- |
PRNDL B Signal |
3 |
0.5 |
GY/BN |
5982 |
IV |
- |
| 4 |
2.5 |
GN/GY |
6387 |
I |
- |
Transmission High Side Driver 1 Signal Driver |
4 |
2.5 |
GN/GY |
6387 |
III |
- |
| 5 |
0.5 |
YE/BU |
4171 |
I |
- |
Transmission Position Sensor A 9V Reference |
5 |
0.5 |
YE/BU |
4171 |
III |
- |
| 6 |
0.5 |
GY/YE |
4169 |
II |
- |
PRNDL S Signal |
6 |
0.5 |
GY/YE |
4169 |
IV |
- |
| 7 |
0.5 |
WH/BU |
4507 |
II |
- |
Transmission Clutch H Control |
7 |
0.5 |
WH/BU |
4507 |
IV |
- |
| 8 |
0.5 |
GY/GN |
6403 |
II |
- |
Clutch D Control |
8 |
0.5 |
GY/GN |
6403 |
IV |
- |
| 9 |
0.5 |
WH |
4508 |
II |
- |
Transmission Clutch G Control |
9 |
0.5 |
WH |
4508 |
IV |
- |
| 10 |
0.5 |
YE/BN |
6210 |
II |
- |
TCC On/Off Solenoid B Control |
10 |
0.5 |
YE/BN |
6210 |
IV |
- |
| 11 |
0.5 |
WH/BK |
5983 |
II |
- |
PRNDL C Signal |
11 |
0.5 |
WH/BK |
5983 |
IV |
- |
| 12 |
0.5 |
WH/GY |
1786 |
II |
- |
Transmission Park/Neutral Signal 1 |
12 |
0.5 |
WH/GY |
1786 |
IV |
- |
| 13 |
0.5 |
GY |
6402 |
II |
- |
Clutch C Control |
13 |
0.5 |
GY |
6402 |
IV |
- |
| 14 |
0.5 |
YE/BN |
6404 |
II |
- |
Clutch E Control |
14 |
0.5 |
YE/BN |
6404 |
IV |
- |
| 15 |
0.5 |
BN/WH |
585 |
II |
- |
Transmission Oil Temperature Sensor Signal |
15 |
0.5 |
BK/BN |
585 |
IV |
- |
| 16 |
0.5 |
BK/BN |
586 |
II |
- |
Transmission Oil Temperature Sensor Low Reference |
16 |
0.5 |
BK/BN |
586 |
IV |
- |
| 17 |
0.5 |
GY/WH |
4168 |
II |
- |
PRNDL P Signal |
17 |
0.5 |
GY/WH |
4168 |
IV |
- |
| 18 |
2.5 |
GY/BN |
6388 |
I |
- |
Transmission High Side Driver 2 Signal |
18 |
2.5 |
GY/BN |
6388 |
III |
- |
| 19 |
0.5 |
YE/GN |
4170 |
I |
- |
Transmission Position Sensor B 9V Reference |
19 |
0.5 |
YE/GN |
4170 |
III |
- |
| 20 |
0.5 |
BK/GY |
3927 |
II |
- |
IMS Mode Switch Low Reference |
20 |
0.5 |
BK/GY |
3927 |
IV |
- |
| 21 |
0.5 |
BN |
6400 |
II |
- |
Clutch A Control |
21 |
0.5 |
BN |
6400 |
IV |
- |
| 22 |
0.5 |
BU |
6401 |
II |
- |
Clutch B Control |
22 |
0.5 |
BU |
6401 |
IV |
- |
