X122 Engine Harness to POA Engine Harness (LGW)
 Courtesy of GENERAL MOTORS COMPANY
|
 Courtesy of GENERAL MOTORS COMPANY
|

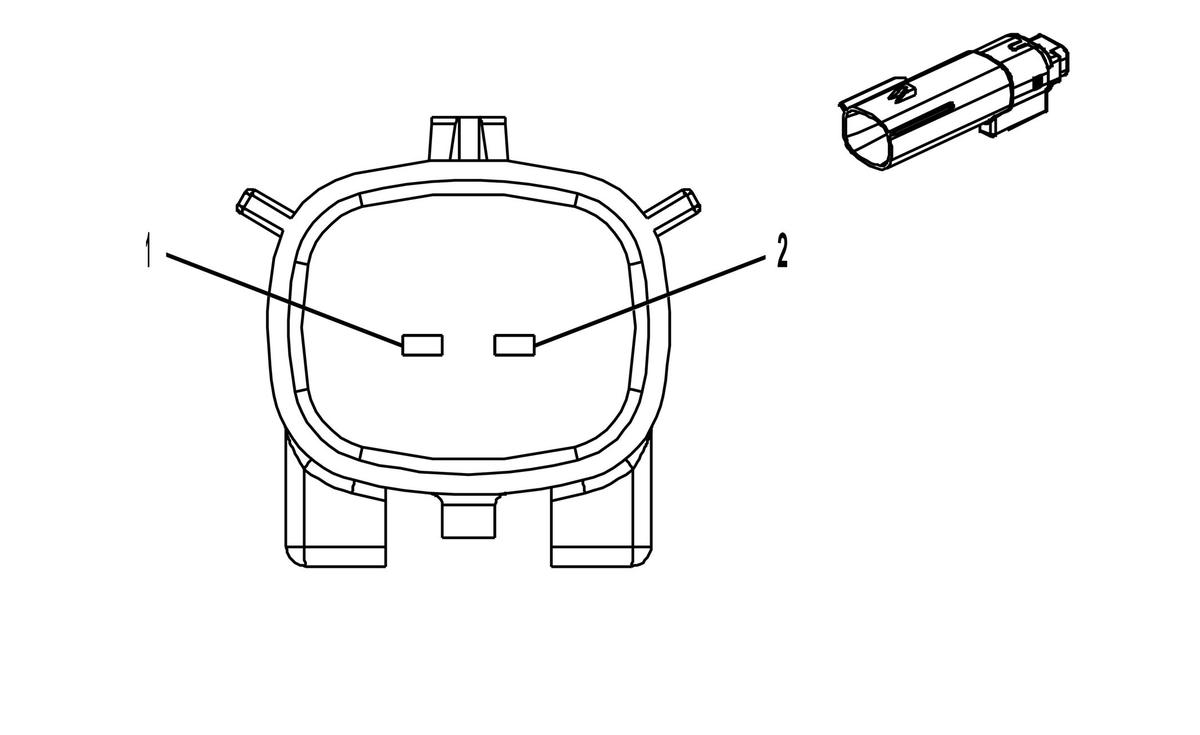

Connector Part Information
- Harness Type: Engine
- OEM Connector: 13583151
- Service Connector: 13577534
- Description: 2-Way F 150 MX Series, Sealed (BK)
|
Connector Part Information
- Harness Type: POA Engine
- OEM Connector: 13503929
- Service Connector: Service by Harness - See Part Catalog
- Description: 2-Way M
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-2A (GY) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| II |
Not Required |
No Tool Required |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
Function |
Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
| 1 |
0.5 |
WH/GY |
1876 |
I |
- |
Knock Sensor Signal 2 |
1 |
0.5 |
WH/GY |
1876 |
II |
- |
| 2 |
0.5 |
BK/GY |
2303 |
I |
- |
Knock Sensor Low Reference 2 |
2 |
0.5 |
BK/GY |
2303 |
II |
- |
