X116 Forward Lamp Harness to Engine Harness

Courtesy of GENERAL MOTORS COMPANY	Courtesy of GENERAL MOTORS COMPANY

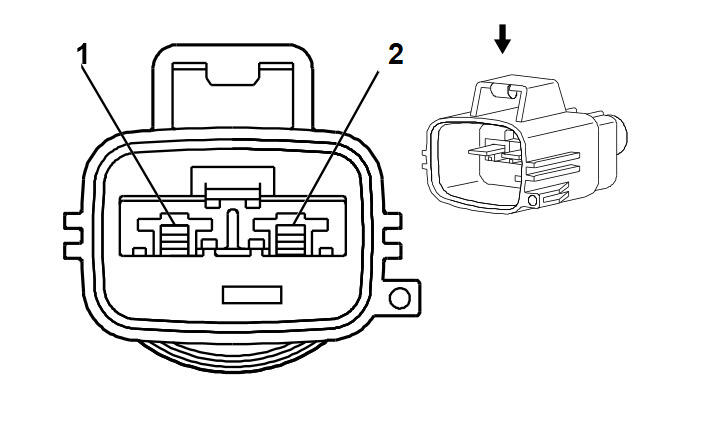

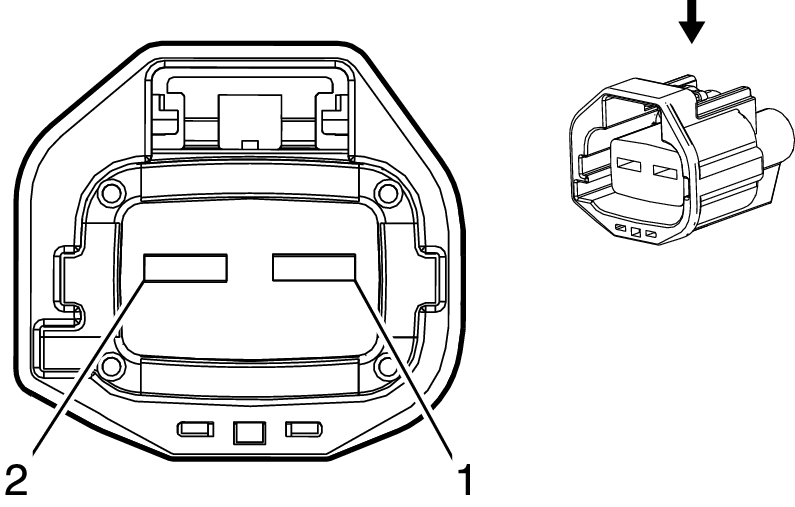

Connector Part Information Harness Type: Forward Lamp OEM Connector: Not Available Service Connector: Service by Harness - See Part Catalog Description: 2-Way F	Connector Part Information Harness Type: Engine OEM Connector: 15425573 Service Connector: 19368132 Description: 2-Way M 6.3 Weather Pack Series (D-GY)

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool	Service Terminal	Tray Name	Core Crimp	Insulation Crimp
I	Not Required	No Tool Required	No Tool Required	Not Required	Not Required	Not Required	Not Required
I	Not Required	No Tool Required	No Tool Required	Not Required	Not Required	Not Required	Not Required
II	Not Required	J-35616-43 (RD)	No Tool Required	Not Required	Not Required	Not Required	Not Required
II	Not Required	J-35616-43 (RD)	No Tool Required	Not Required	Not Required	Not Required	Not Required

Pin	Size	Color	Circuit	Terminal Type ID	Option	Function	Pin	Size	Color	Circuit	Terminal Type ID	Option
1	2.5	YE	6	I	LGW	Starter Solenoid Crank Ignition Voltage	1	2.5	YE	6	II	LGW
2	- 2.5	YE/GN YE	4358 4358	I I	KL9 LGW	Starter Pinion Solenoid Voltage Starter Pinion Solenoid Voltage	2	2.5 -	YE/GN YE/GN	4358 4358	II II	KL9 -LGW
