X103 Front Fascia Harness to Front Fascia Harness (UV3)
 Courtesy of GENERAL MOTORS COMPANY
|
- |

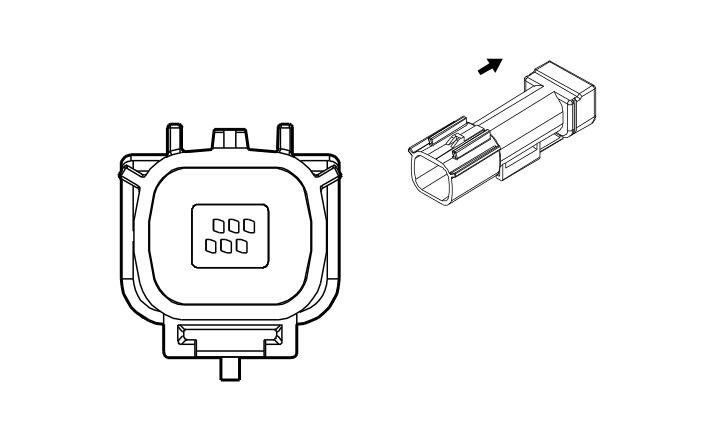

Connector Part Information
- Harness Type: Front Fascia LVDS
- OEM Connector: 13581666
- Service Connector: Service by Cable Assembly - See Part Catalog
- Description: 6-Way F HSAL-2 Series (BK)
|
Connector Part Information
- Harness Type: Front Fascia LVDS
- OEM Connector: Not Available
- Service Connector: Service by Cable Assembly - See Part Catalog
- Description: 6-Way M
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
No Tool Required |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
Function |
Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
| - |
- |
LVDS |
- |
I |
- |
Night Vision Signal |
- |
- |
LVDS |
- |
I |
- |
