Steering Gear Heat Shield Replacement (NJ2)

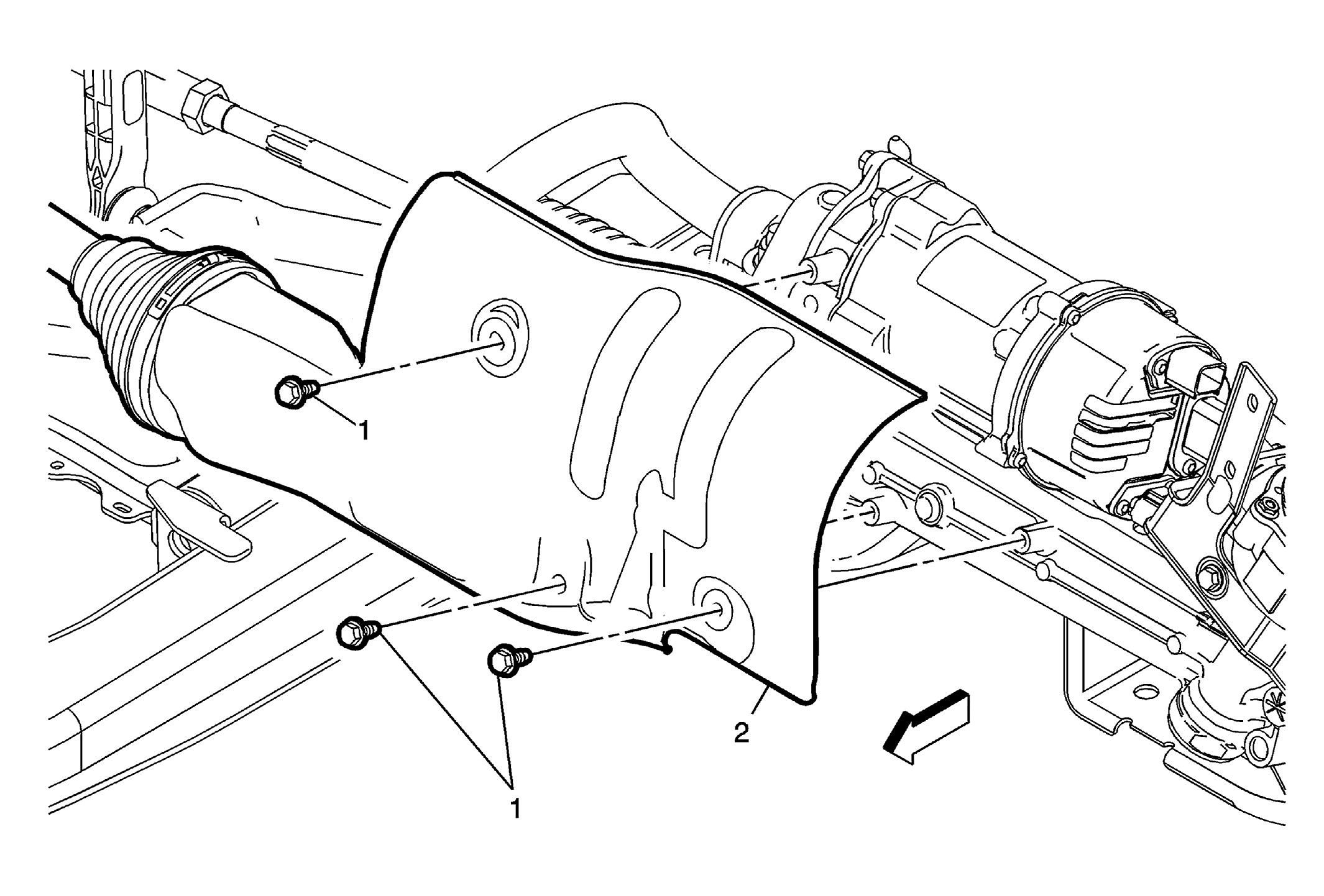

Fig 1: Steering Gear Heat Shield (NJ2)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle
1	Steering Gear Heat Shield Bolt (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten  9 N.m (80 lb in)
2	Steering Gear Heat Shield
