Steering Wheel Airbag Replacement

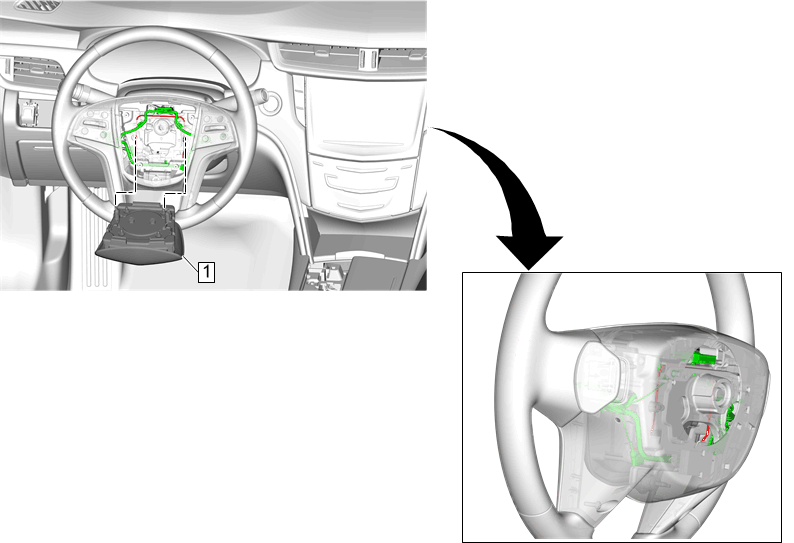

Fig 1: Steering Wheel Airbag
GM4738712Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
WARNING:

Refer to SIR Warning .

WARNING:

Refer to SIR Inflator Module Handling and Storage Warning .

Preliminary Procedure Disable the SIR system. SIR Disabling and Enabling
1 Steering Wheel Airbag
WARNING:

After installation of the steering wheel airbag module to the steering wheel, slightly pull the module outward. If there is no give on the airbag module then it is secured correctly. If the airbag module is not fully attached personal injury could result.

Procedure

  1. Insert a flat-bladed or equivalent tool into the access holes on the left and right side of the steering wheel.
  2. Apply and keep constant pressure on tool while pushing the spring fastener inward to release the steering wheel airbag from the steering wheel.
  3. Release the connector position assurance (CPA) retainer.
  4. Disconnect the electrical connectors.
  5. Inflatable Restraint Module Handling and Scrapping
  6. Enable the SIR System. SIR Disabling and Enabling
