Instrument Panel Lower Airbag Replacement (Driver Side)

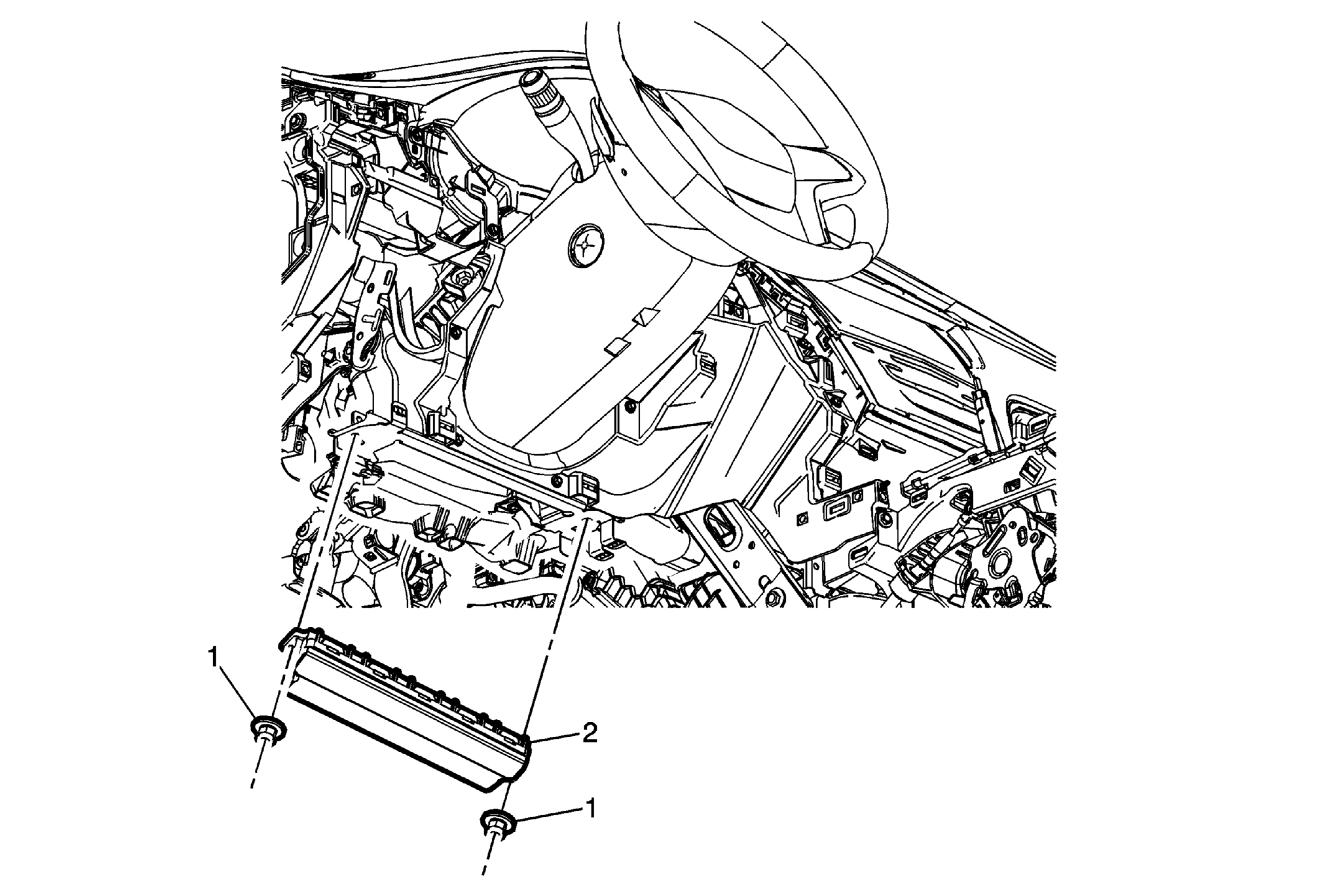

Fig 1: Instrument Panel Lower Airbag & Nuts (Driver Side)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to SIR Inflator Module Handling and Storage Warning . WARNING: Refer to SIR Warning . Preliminary Procedure Disable the SIR system. Refer to SIR Disabling and Enabling .
1	Instrument Panel Lower Airbag Nut (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Instrument Panel Lower Airbag Assembly Procedure Refer to Inflatable Restraint Module Handling and Scrapping . Enable the SIR system. Refer to SIR Disabling and Enabling .

Callout

Component Name

WARNING:

WARNING:

Preliminary Procedure Disable the SIR system. Refer to SIR Disabling and Enabling .

Instrument Panel Lower Airbag Nut (Qty: 2)

CAUTION:

Tighten
9 N.m (80 lb in)

Instrument Panel Lower Airbag Assembly

Procedure
