Front Floor Console Rear Air Duct Replacement

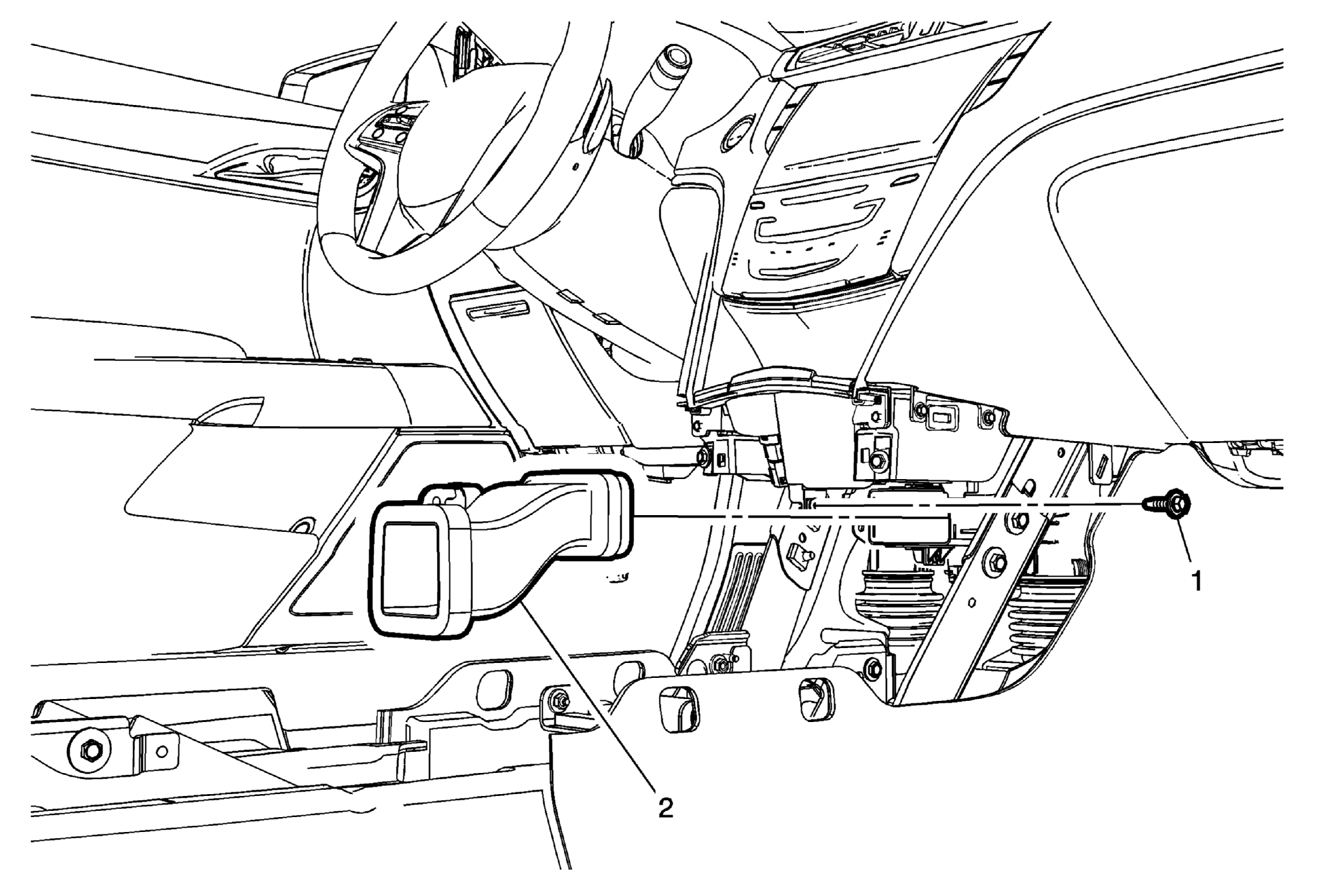

Fig 1: Front Floor Console Rear Air Duct & Fasteners
GM2759405Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove Front Floor Console. Refer to Front Floor Console Replacement
1 Front Floor Console Rear Air Duct Bolt
CAUTION:

Refer to Fastener Caution .


Tighten
2.5 N.m (22 lb in)
2 Front Floor Console Rear Air Duct
