Air Conditioning Evaporator Thermal Expansion Valve Heat and Brake Pipe Shield Replacement (LF3)

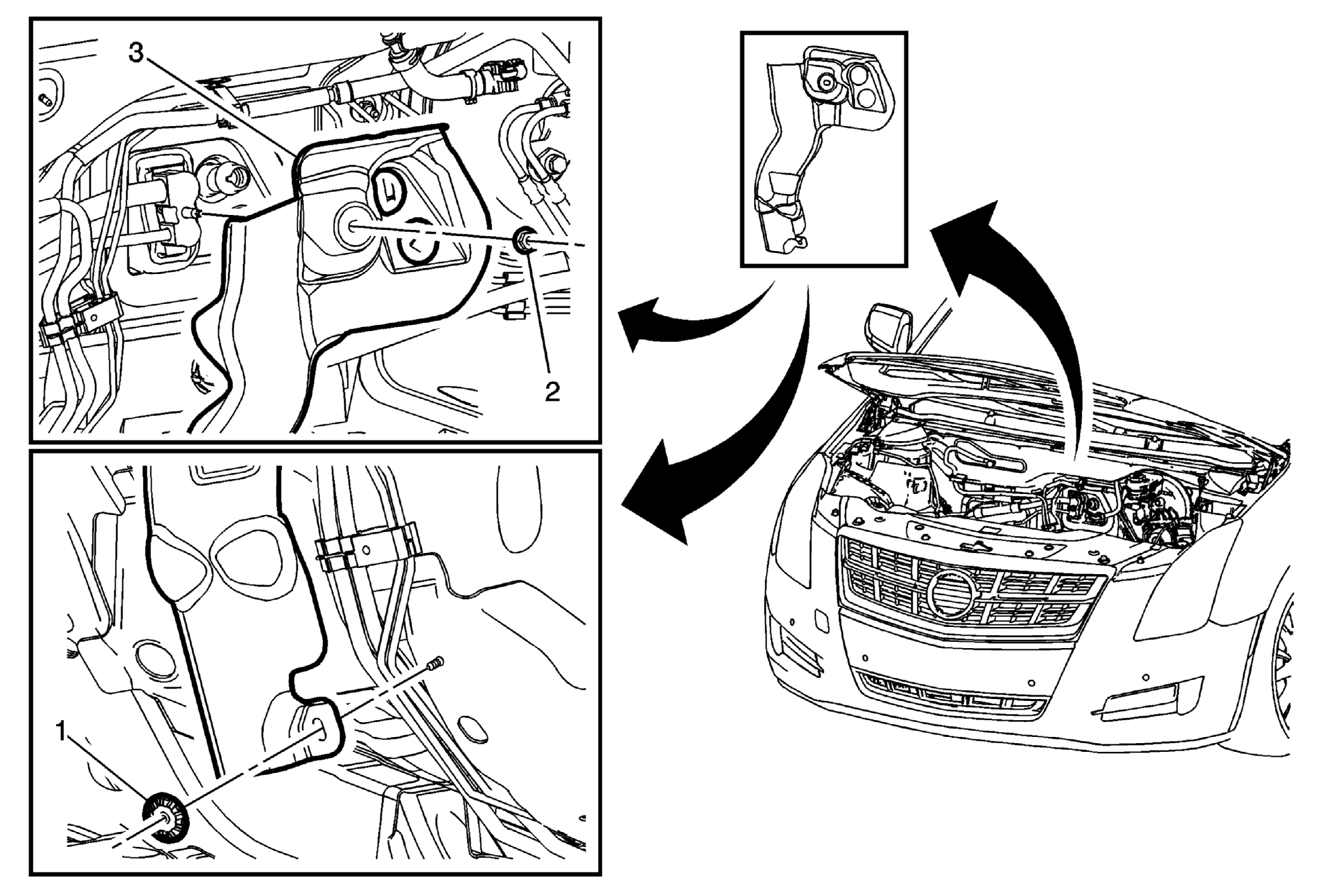

Fig 1: Air Conditioning Evaporator Thermal Expansion Valve Heat and Brake Pipe Shield (LF3)
GM3303513Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the electric belt drive rack and pinion steering gear. Refer to Electric Belt Drive Rack and Pinion Steering Gear Replacement (FWD, LFX, NJ2) .
1 AC Evaporator Thermal Expansion Valve Heat and Brake Pipe Shield Retainer
2 AC Evaporator Thermal Expansion Valve Heat and Brake Pipe Shield Retainer
3 Air Conditioning Evaporator Thermal Expansion Valve Heat and Brake Pipe Shield
