Evaporative Emission Canister Replacement (AWD)

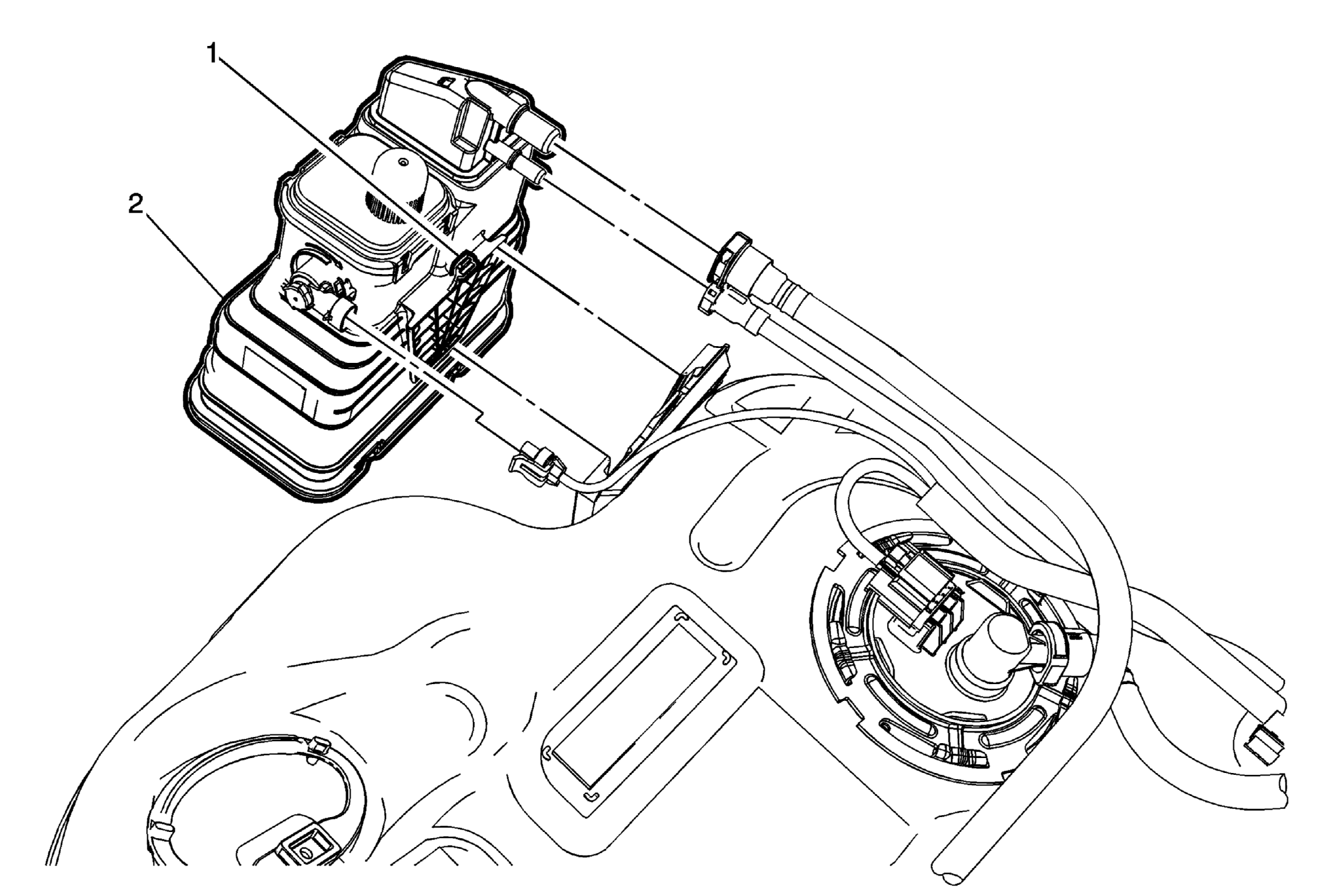

Fig 1: Evaporative Emission Canister (With AWD)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Lower the fuel tank enough to allow evaporative emission canister removal. Refer to Fuel Tank Replacement (AWD) .
1	Evaporative Emission Canister Retaining Tab Procedure Depress the retaining tab in order to release the evaporative emission canister from the fuel tank.
2	Evaporative Emission Canister Procedure Release the evaporative emission vent pipe from the evaporative emission canister. Refer to Plastic Collar Quick Connect Fitting Service . Release the evaporative emission canister purge pipe from the evaporative emission canister. Refer to Plastic Collar Quick Connect Fitting Service . Disconnect the evaporative emission canister solenoid wiring harness.

Callout

Component Name

Preliminary Procedure
Lower the fuel tank enough to allow evaporative emission canister removal. Refer to Fuel Tank Replacement (AWD) .

Evaporative Emission Canister Retaining Tab
Procedure
Depress the retaining tab in order to release the evaporative emission canister from the fuel tank.

Evaporative Emission Canister

Procedure

Release the evaporative emission vent pipe from the evaporative emission canister. Refer to Plastic Collar Quick Connect Fitting Service .
Release the evaporative emission canister purge pipe from the evaporative emission canister. Refer to Plastic Collar Quick Connect Fitting Service .
Disconnect the evaporative emission canister solenoid wiring harness.
