Air Cleaner Outlet Duct Replacement (LFX)

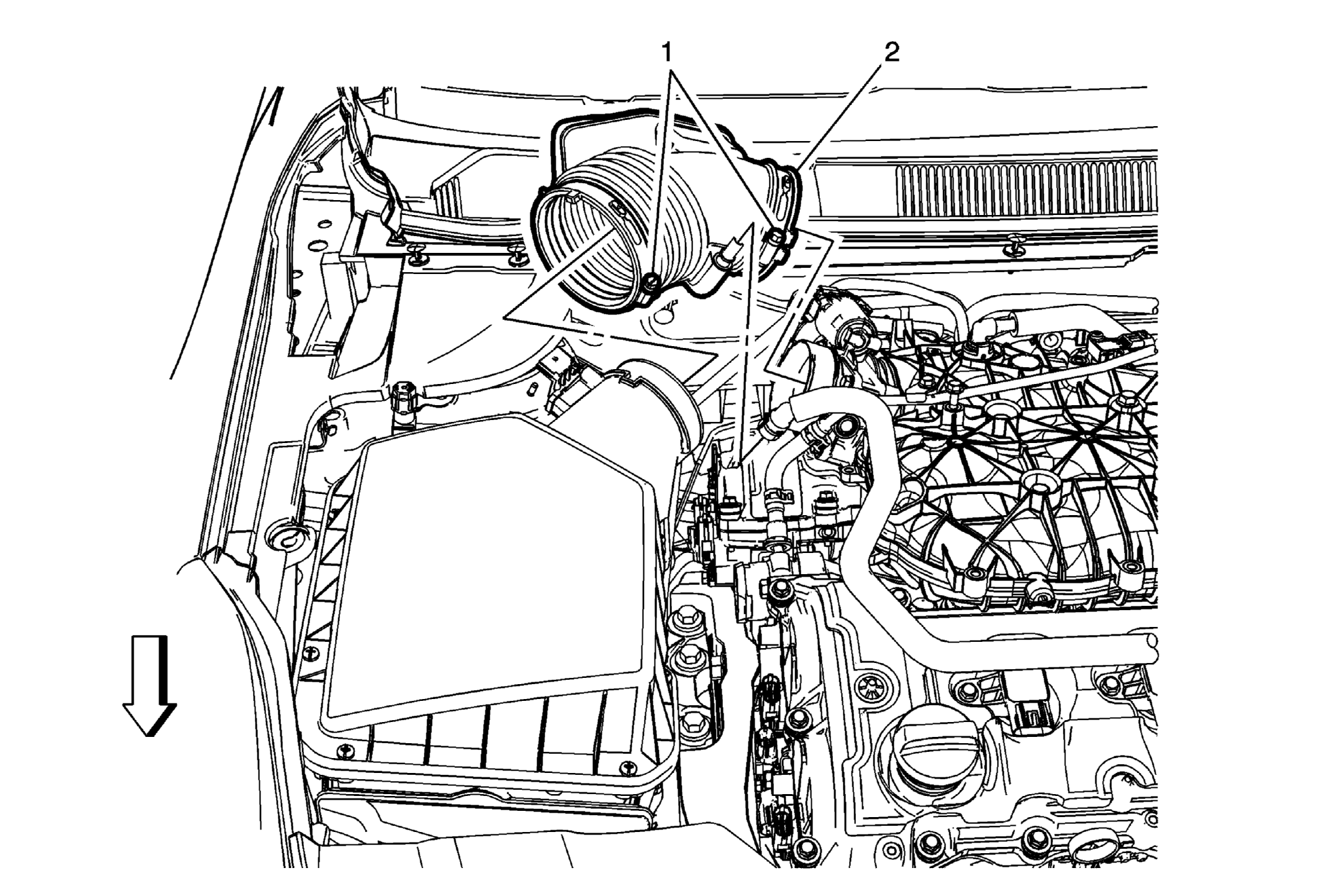

Fig 1: Air Cleaner Outlet Duct (LFX)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the intake manifold cover. Refer to Intake Manifold Cover Replacement (LFX) .
1	Air Cleaner Outlet Duct Clamps (Qty 2) CAUTION: Refer to Fastener Caution . NOTE: Ensure the outlet duct is fully seated to the mating surfaces before clamping. Verify that the cuff is not rolled under.
2	Air Cleaner Outlet Duct Procedure Disconnect the PCV tube from the air cleaner outlet duct.
