Turbocharger Heat Shield Replacement (Front)

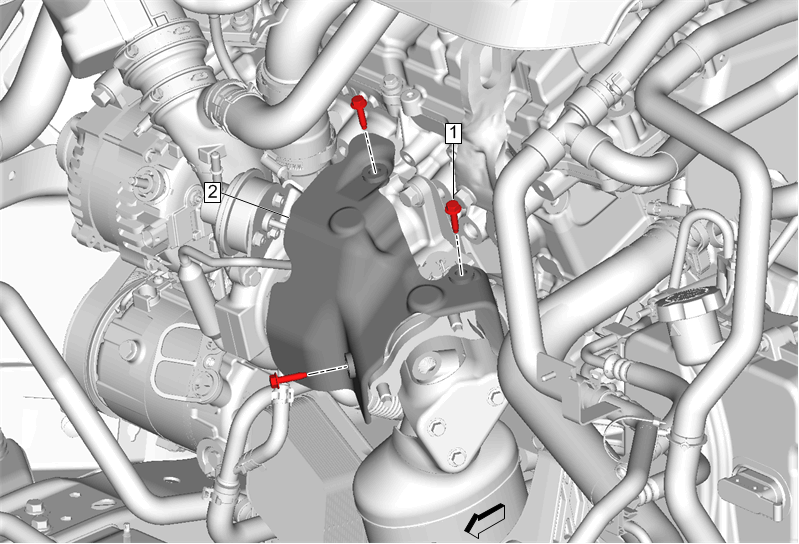

Fig 1: Turbocharger Heat Shield

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures  Relocate the turbocharger wastegate actuator vacuum tank. Turbocharger Wastegate Actuator Vacuum Tank Replacement (LF3) Remove the heated oxygen sensor bank 2 sensor 1. Heated Oxygen Sensor Replacement - Bank 2 Sensor 1 (LFX)Heated Oxygen Sensor Replacement - Bank 2 Sensor 1 (LF3)
1	Turbocharger Heat Shield Fasteners [3x] CAUTION: Refer to Fastener Caution . Tighten  9 N.m (80 lb in)
2	Turbocharger Heat Shield
