Exhaust Muffler Replacement (AWD)

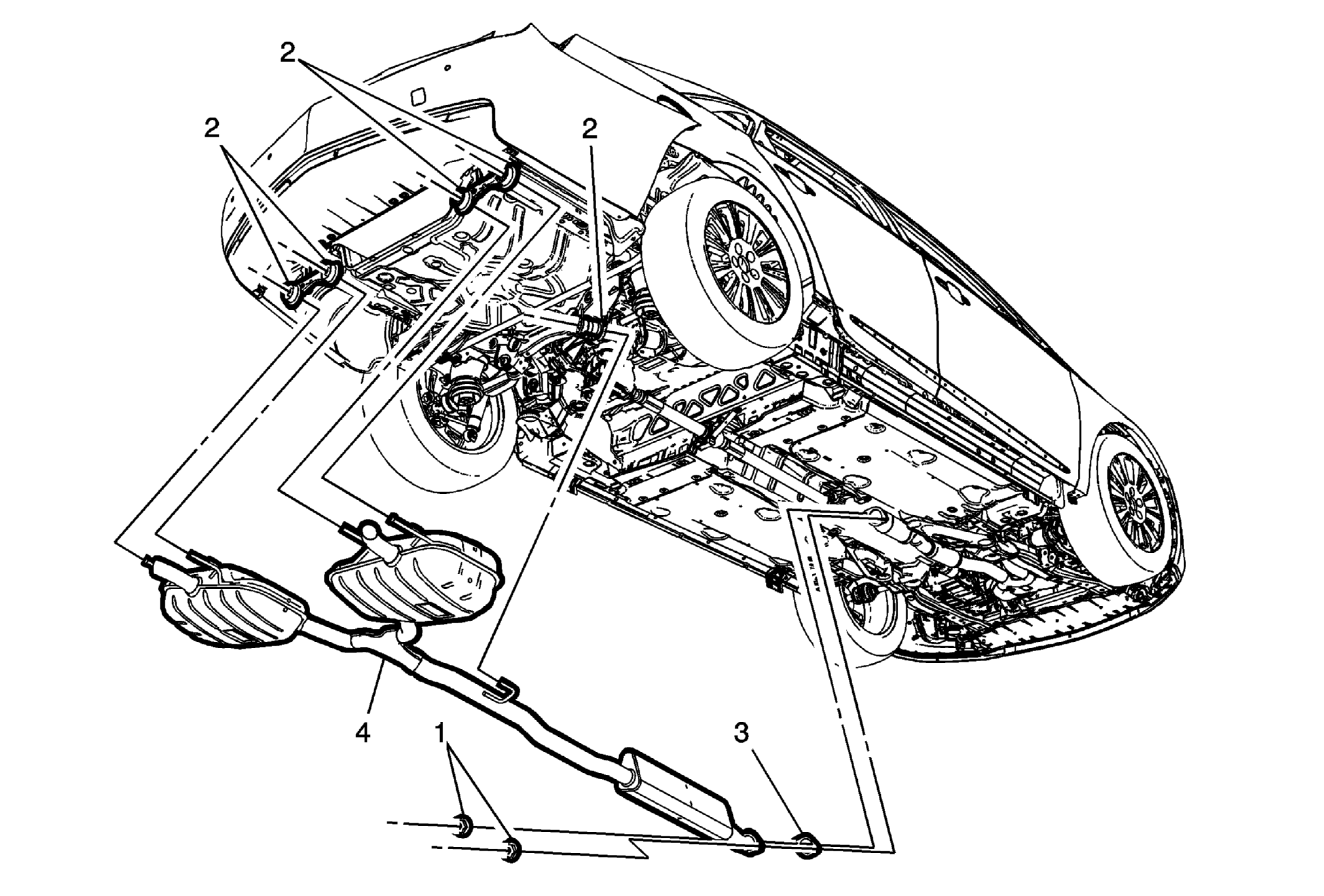

Fig 1: Exhaust Muffler Components (AWD)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to Exhaust Service Warning . WARNING: Refer to Eye Protection Warning . Preliminary Procedure Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the underbody brace. Refer to Underbody Brace Replacement (Professional) .
1	Exhaust Muffler Fasteners (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 18 N.m (13 lb ft)
2	Exhaust Isolators NOTE: Clean and lubricate the exhaust isolators for ease of installation
3	Exhaust Gasket NOTE: Replace with NEW gaskets
4	Exhaust Muffler - AWD
