Sunroof Window Motor Replacement

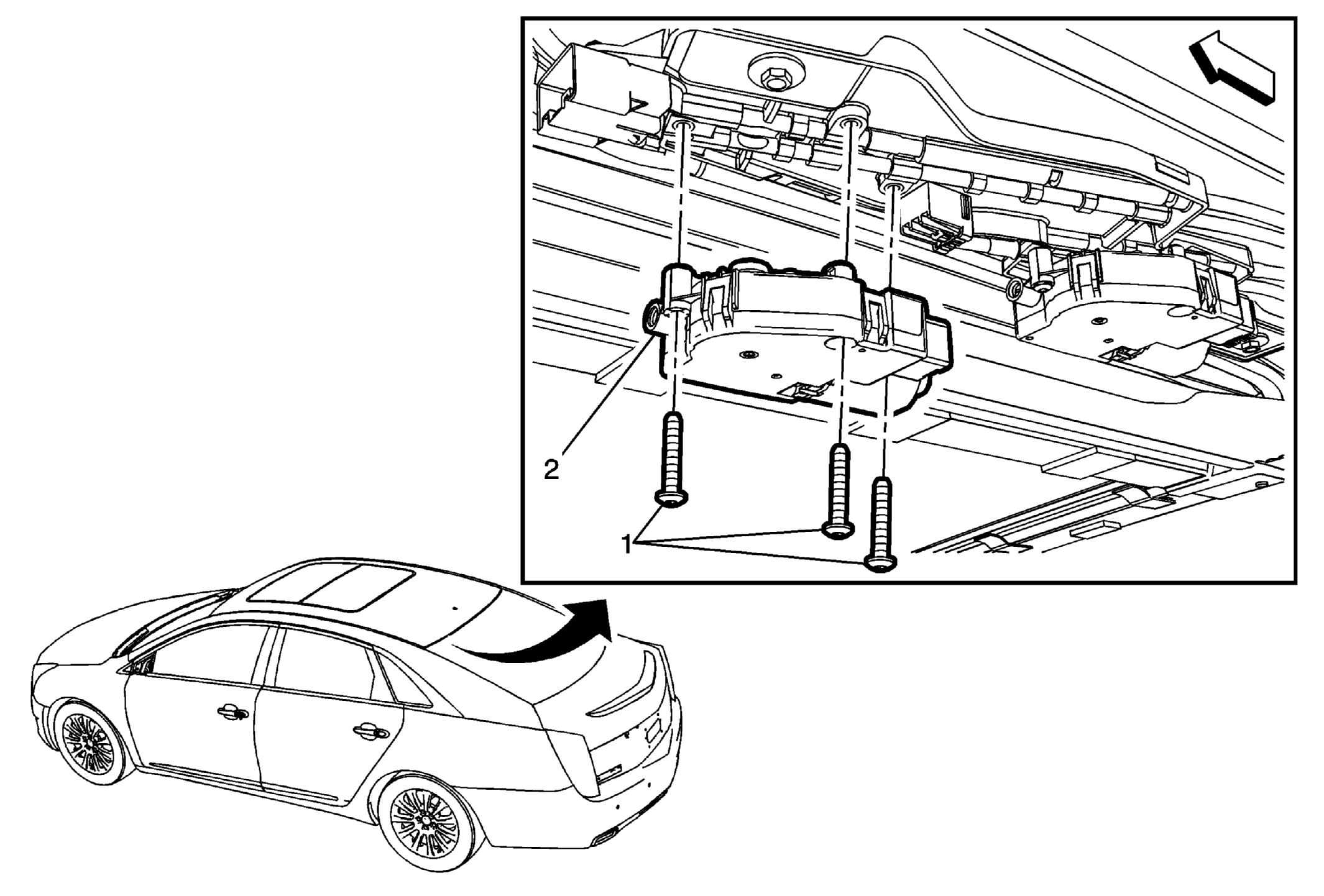

Fig 1: Sunroof Window Motor & Bolts

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure It is only necessary to lower the headliner. Only perform the steps in the headliner replacement procedure that will lower the headliner enough to gain access to the part. Refer to Headlining Trim Panel Replacement (With Sunroof) .
1	Sunroof Motor Bolt (Qty: 3) CAUTION: Refer to Fastener Caution . Procedure Open sunshade fully open position. Disconnect the electrical connector. With a turning motion, pull downward on the motor. Disengage the motor from the drive cables. Tighten 4 N.m (35 lb in)
2	Sunroof Motor Procedure Install the motor to the frame with a turning motion and push upward. This will engage motor into the drive cables. Verify the sunroof motor initialization operation. Refer to Sunroof Motor/Actuator Initialization/Teach Process . Water test vehicle to ensure No leaks.

Callout

Component Name

Preliminary Procedure
It is only necessary to lower the headliner. Only perform the steps in the headliner replacement procedure that will lower the headliner enough to gain access to the part. Refer to Headlining Trim Panel Replacement (With Sunroof) .

Sunroof Motor Bolt (Qty: 3)

CAUTION:

Refer to Fastener Caution .

Procedure

Open sunshade fully open position.
Disconnect the electrical connector.
With a turning motion, pull downward on the motor. Disengage the motor from the drive cables.

Tighten
4 N.m (35 lb in)

Sunroof Motor

Procedure

Install the motor to the frame with a turning motion and push upward. This will engage motor into the drive cables.
Verify the sunroof motor initialization operation. Refer to Sunroof Motor/Actuator Initialization/Teach Process .
Water test vehicle to ensure No leaks.
