Driver or Passenger Seat Inner Recliner Finish Cover Replacement

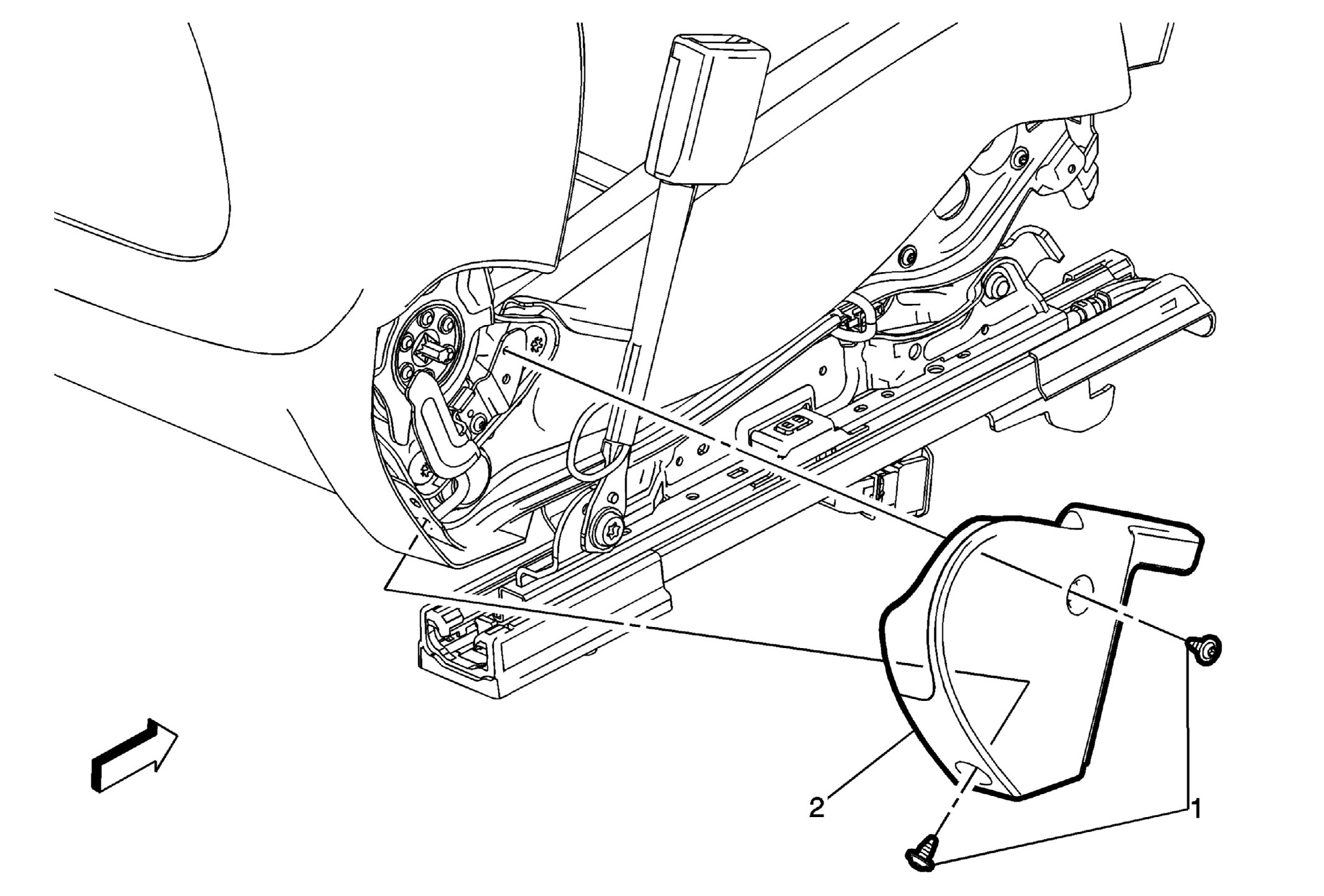

Fig 1: Driver or Passenger Seat Inner Recliner Finish Cover & Fasteners

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the driver or passenger seat removal. Refer to Driver or Passenger Seat Removal and Installation .
1	Driver or Passenger Seat Inner Recliner Finish Cover Fastener (Qty: 2) CAUTION: Refer to Fastener Caution .
2	Driver or Passenger Seat Inner Recliner Finish Cover Procedure Disengage the seat back cushion finish panel straps and pull back the toe kick cover to gain access to the rear fastener. Remove the inner finish cover by pulling upward.

Callout

Component Name

Preliminary Procedure
Remove the driver or passenger seat removal. Refer to Driver or Passenger Seat Removal and Installation .

Driver or Passenger Seat Inner Recliner Finish Cover Fastener (Qty: 2)

CAUTION:

Driver or Passenger Seat Inner Recliner Finish Cover

Procedure

Disengage the seat back cushion finish panel straps and pull back the toe kick cover to gain access to the rear fastener.
Remove the inner finish cover by pulling upward.
