Driver or Passenger Seat Cushion Outer Finish Panel Replacement (AQJ)

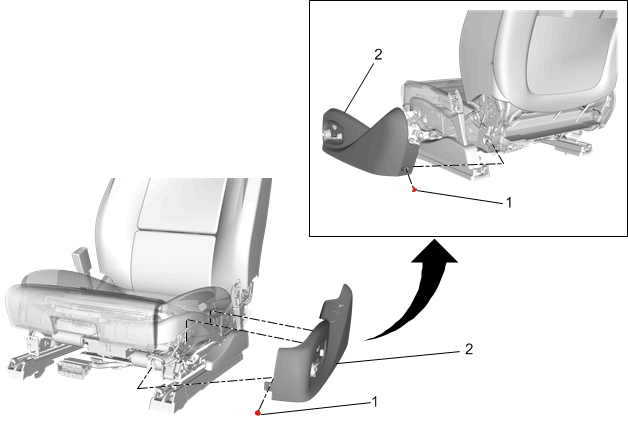

Fig 1: Driver or Passenger Seat Cushion Outer Finish Panel (AQJ)
GM3958587Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedure

  1. Remove the driver or passenger seat adjuster finish cover. Refer to Driver or Passenger Seat Adjuster Finish Cover Replacement .
  2. Remove the seat belt from the seat belt tensioner. Refer to Front Seat Belt Anchor Plate Tensioner Replacement .
1 Driver or Passenger Seat Cushion Outer Finish Panel Fastener (Qty: 2)
CAUTION:

Refer to Fastener Caution .


Tighten
2.5 N.m (22 lb in)
2 Driver or Passenger Seat Cushion Outer Finish Panel

Procedure

  1. Pull back the toe kick cover to gain access to the rear fastener.
  2. Pull upward to disengage the hooks on the outer finish panel from the seat.
  3. Disconnect the electrical connectors.
  4. If replacing the finish panel, transfer components as necessary.
