Underbody Rear Air Deflector Replacement - Left Side

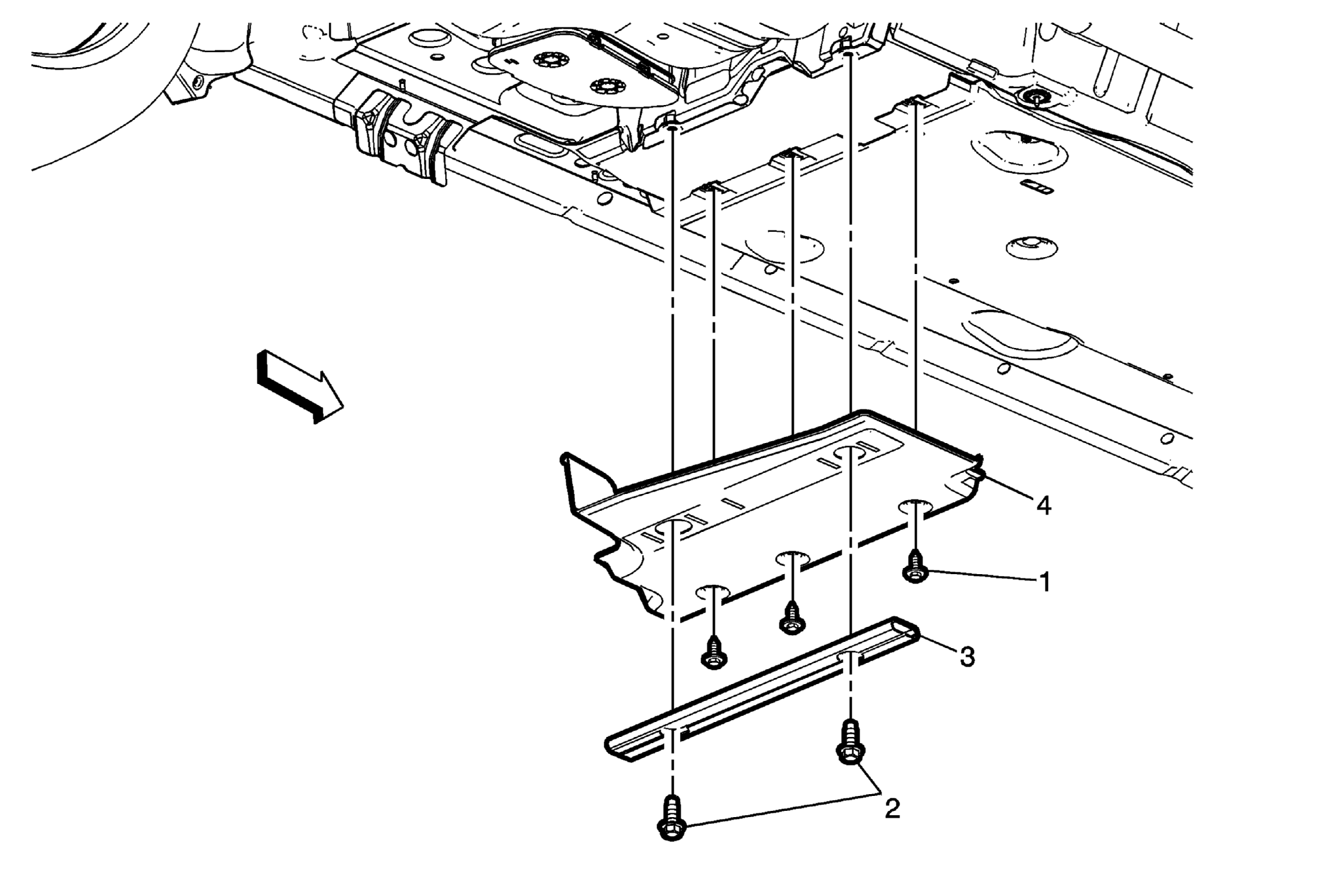

| Callout | Component Name |
|---|---|
|
WARNING:
Preliminary Procedure Raise and support the vehicle. Lifting and Jacking the Vehicle
.Do not use a service jack to lift this vehicle. Lifting the vehicle with a jack could cause the vehicle to slip off the jack and roll; this could cause injury or death. |
|
| 1 | Underbody Left Rear Air Deflector Fasteners (Qty 3)
CAUTION:
Refer to Fastener Caution . Tighten 3 N.m (27 lb in) |
| 2 | Fuel Tank Protector Fasteners (Qty 2) Tighten 58 N.m (43 lb ft) |
| 3 | Fuel Tank Protector |
| 4 | Underbody Left Rear Air Deflector |
