Rear Side Door Trim Panel Insert Replacement
Rear Side Door Trim Panel Insert Replacement

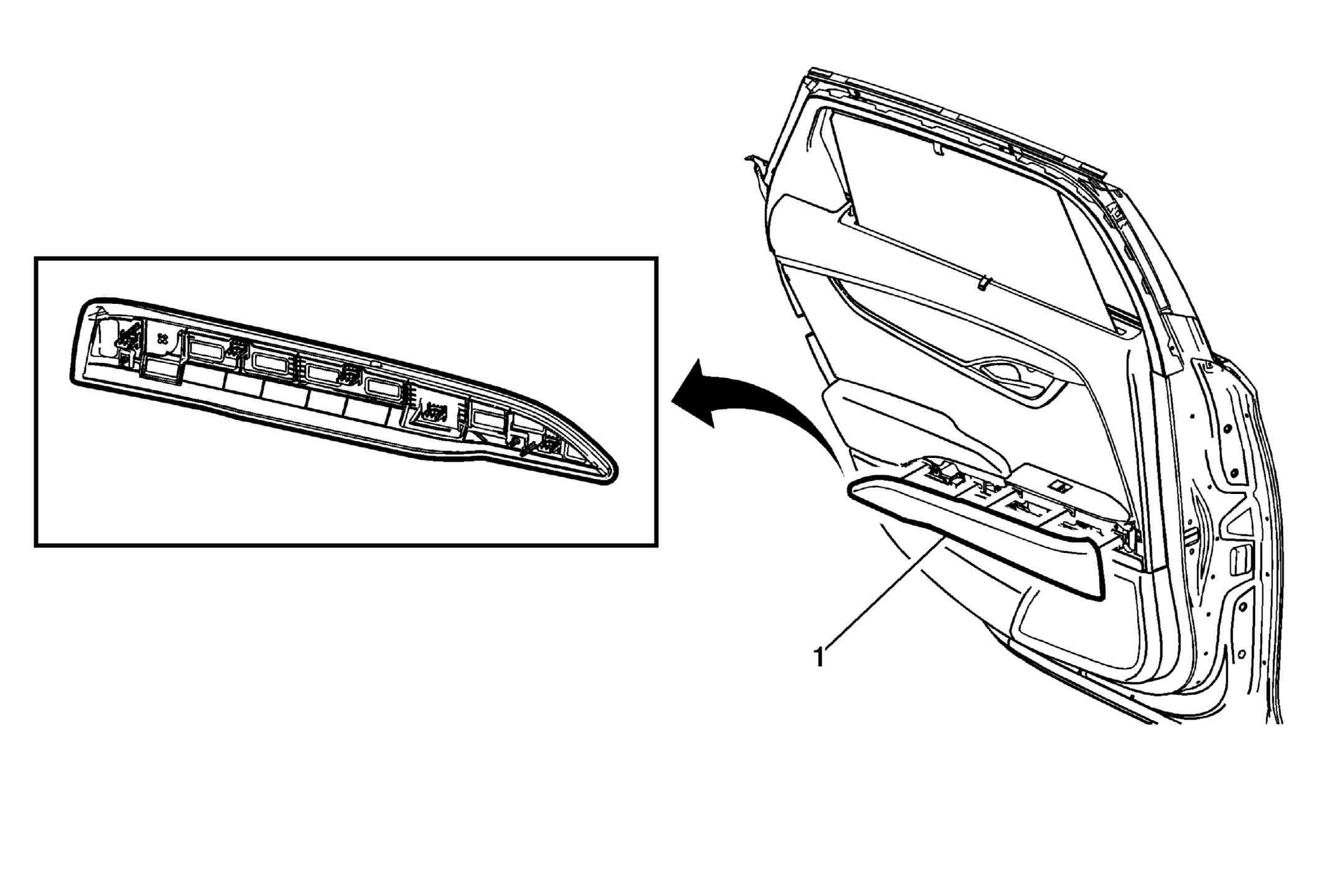

Fig 1: Rear Side Door Trim Panel Insert
Courtesy of GENERAL MOTORS COMPANY
Callout
Component Name
1
Rear Side Door Trim Panel Insert Assembly
Procedure
Using a flat-bladed tool, release the rear side door trim panel insert from the rear side door trim.
