Rear Compartment Lid Latch Cover Replacement

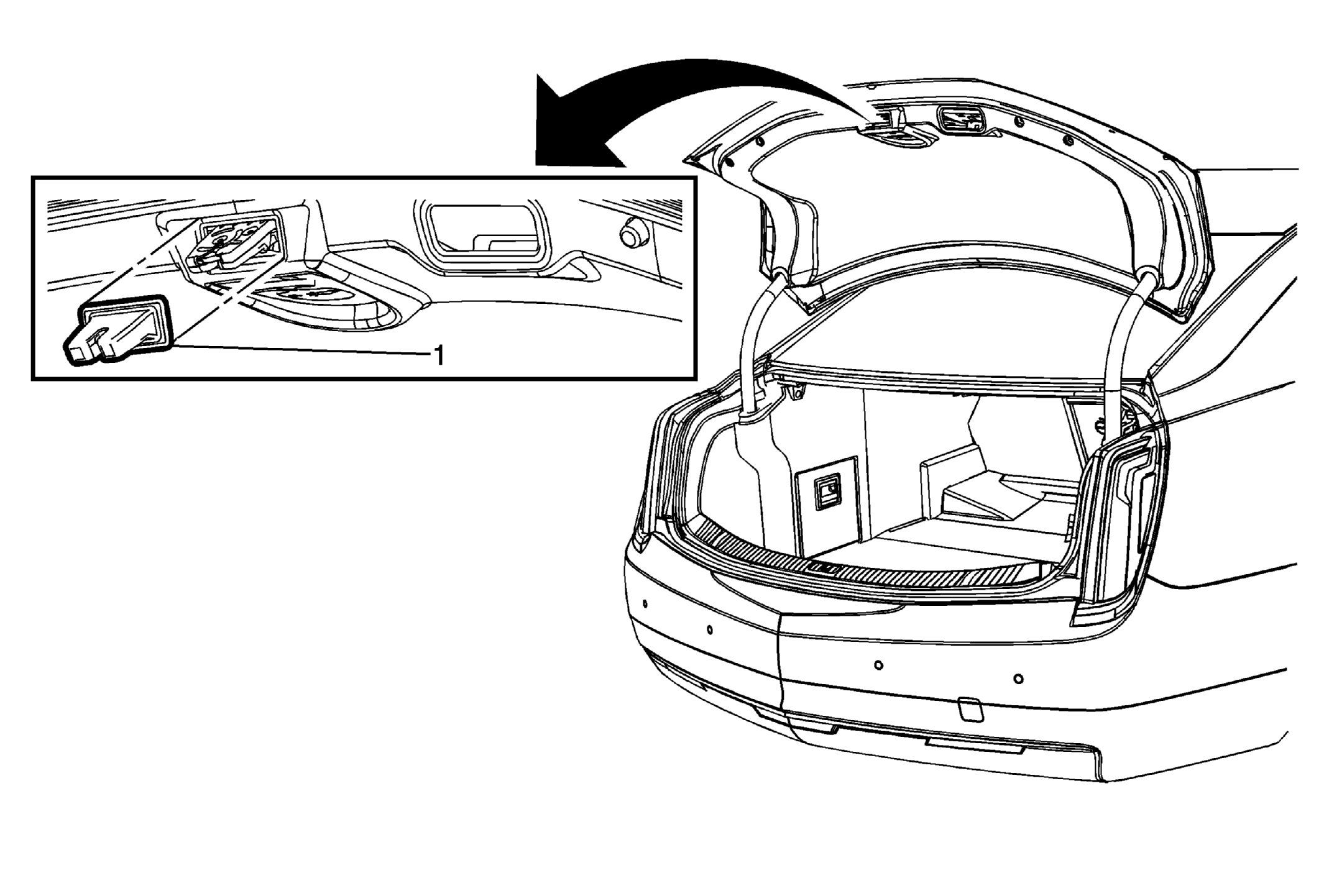

Fig 1: Rear Compartment Lid Latch Cover
GM2769423Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Rear Compartment Lid Latch Cover Assembly
Procedure
Use a small flat-bladed tool to pull and release the rear compartment lid latch cover.
