Instrument Panel Molding Replacement - Passenger Side

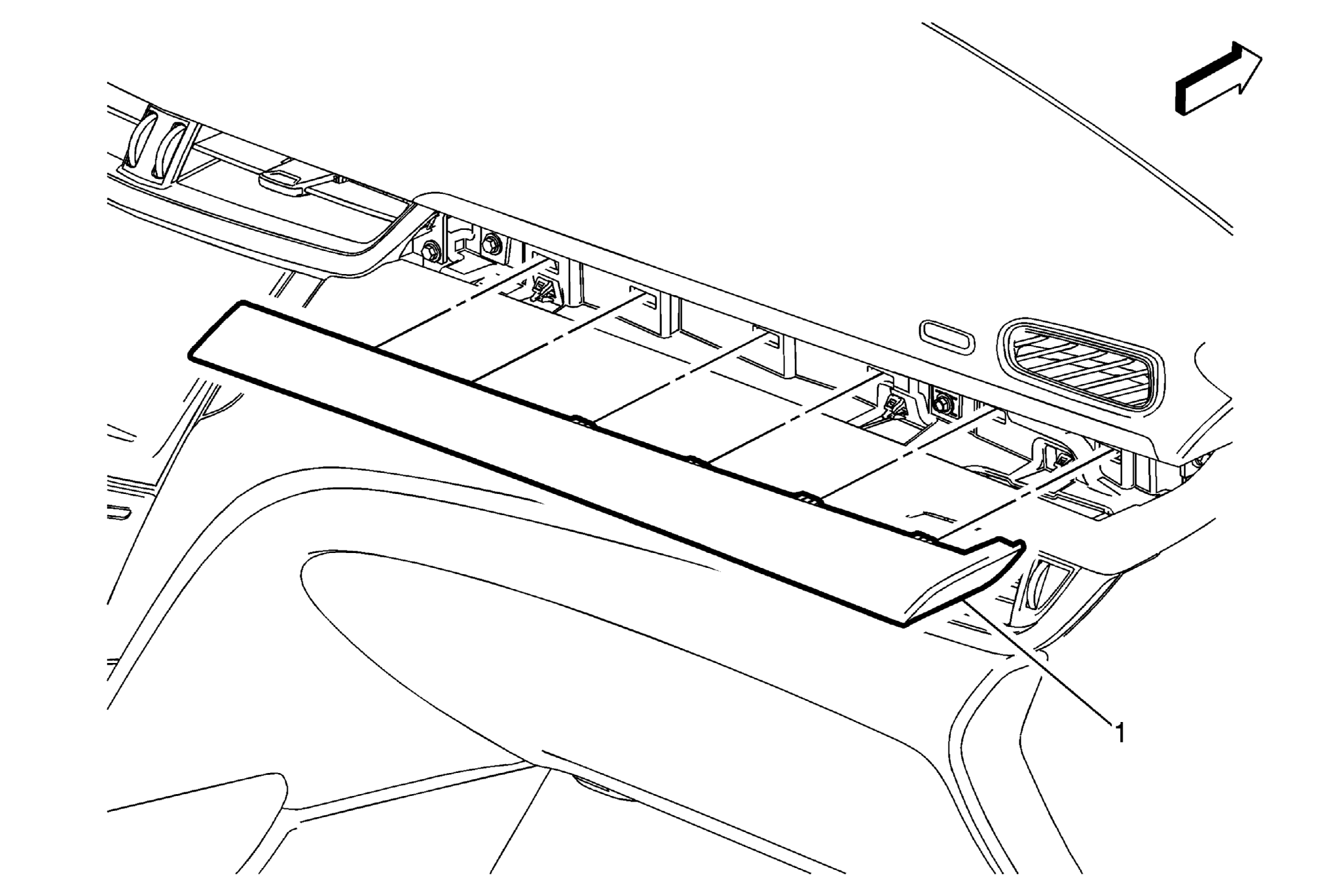

Fig 1: Instrument Panel Molding - Passenger Side
GM2750389Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Instrument Panel Molding - Passenger Side
Procedure
Use a flat bladed plastic trim tool to aid in the removal of the molding from the instrument panel assembly.
