Instrument Panel Lower Trim Plate Replacement

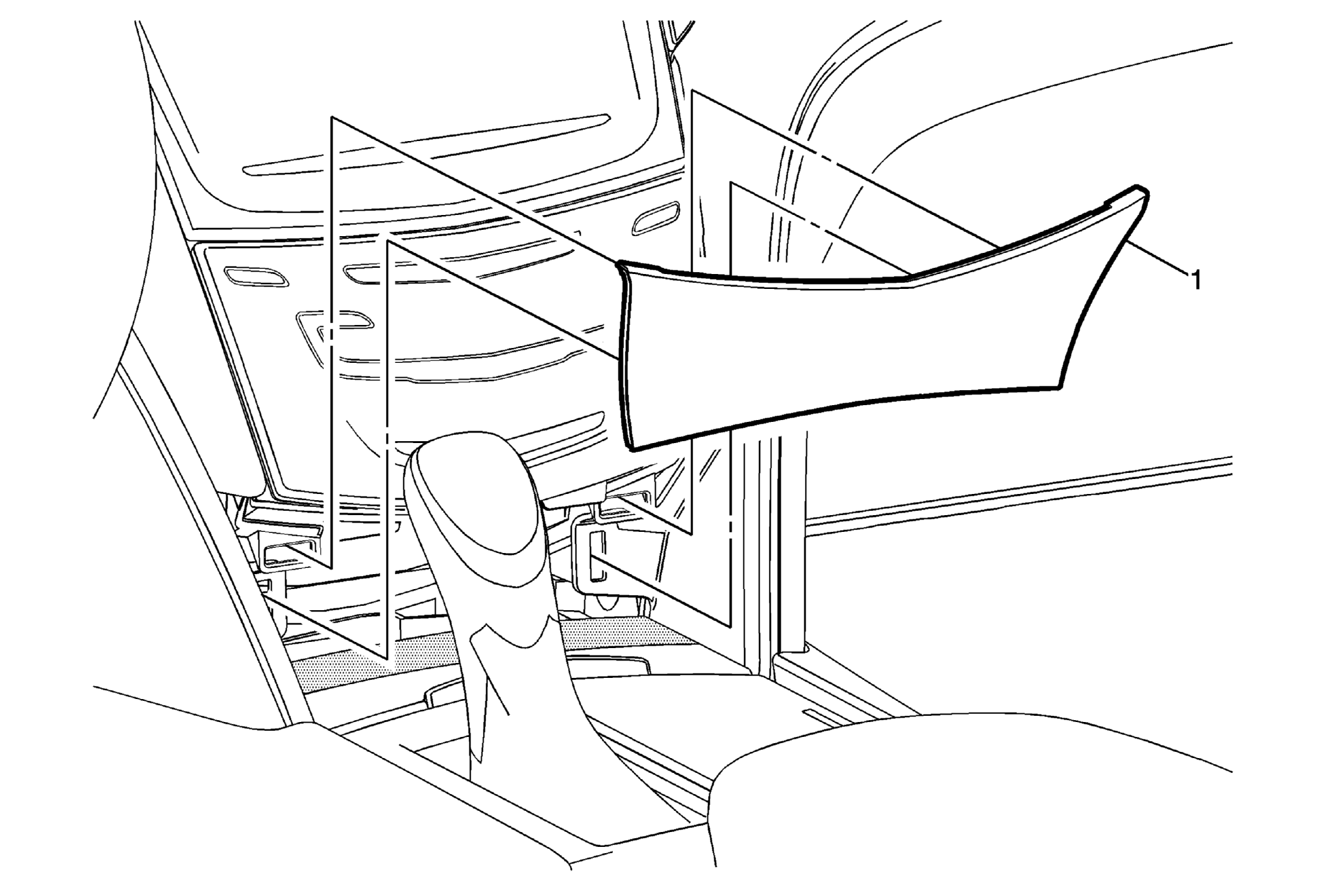

| Callout | Component Name |
|---|---|
| 1 | Instrument Panel Lower Trim Plate Procedure Use a flat bladed plastic trim tool to aid in the removal of the trim plate from the instrument panel assembly.
NOTE:
Use care in removing the four clips that attach the instrument panel lower trim plate. The plate is removed at an unusual angle. Apply tape on the ashtray door to protect the surface from scratching. |
