Front Floor Console Cup Holder Plate Replacement

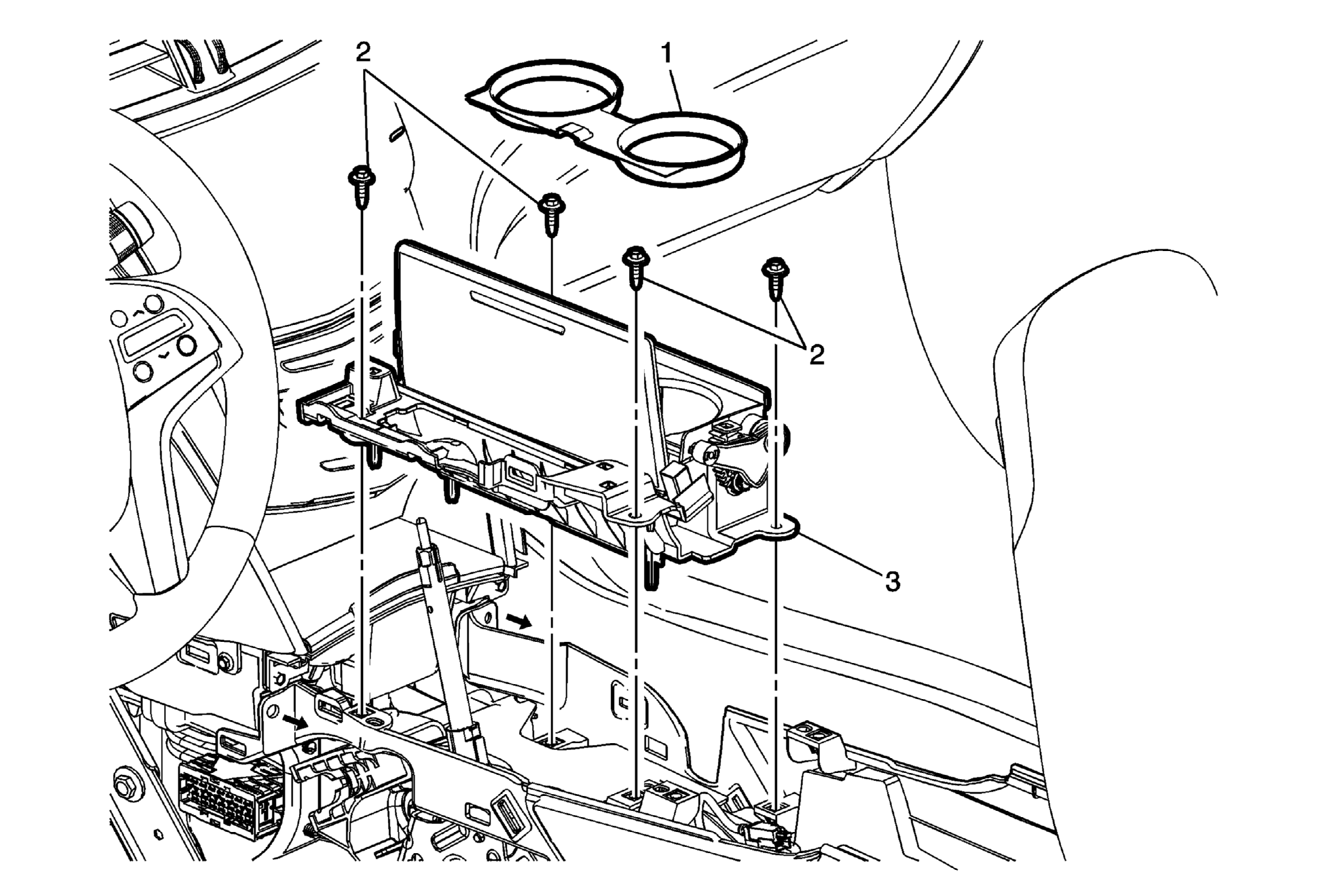

Fig 1: Front Floor Console Cup Holder Components

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front floor console compartment. Refer to Front Floor Console Compartment Replacement . Remove the transmission control lever knob. Refer to Transmission Control Lever Knob Replacement . Remove the front floor console mounting bolts and slide console slightly rearward for clearance purposes. Refer to Front Floor Console Replacement .
1	Front Floor Console Cup Holder Liner Procedure Remove the liner to access a fastener.
2	Front Floor Console Cup Holder Plate Fasteners (Qty: 4) CAUTION: Refer to Fastener Caution . NOTE: One of the 4 fasteners is located under the cup holder liner.
3	Front Floor Console Cup Holder Plate
