Rear Bumper Energy Absorber Replacement

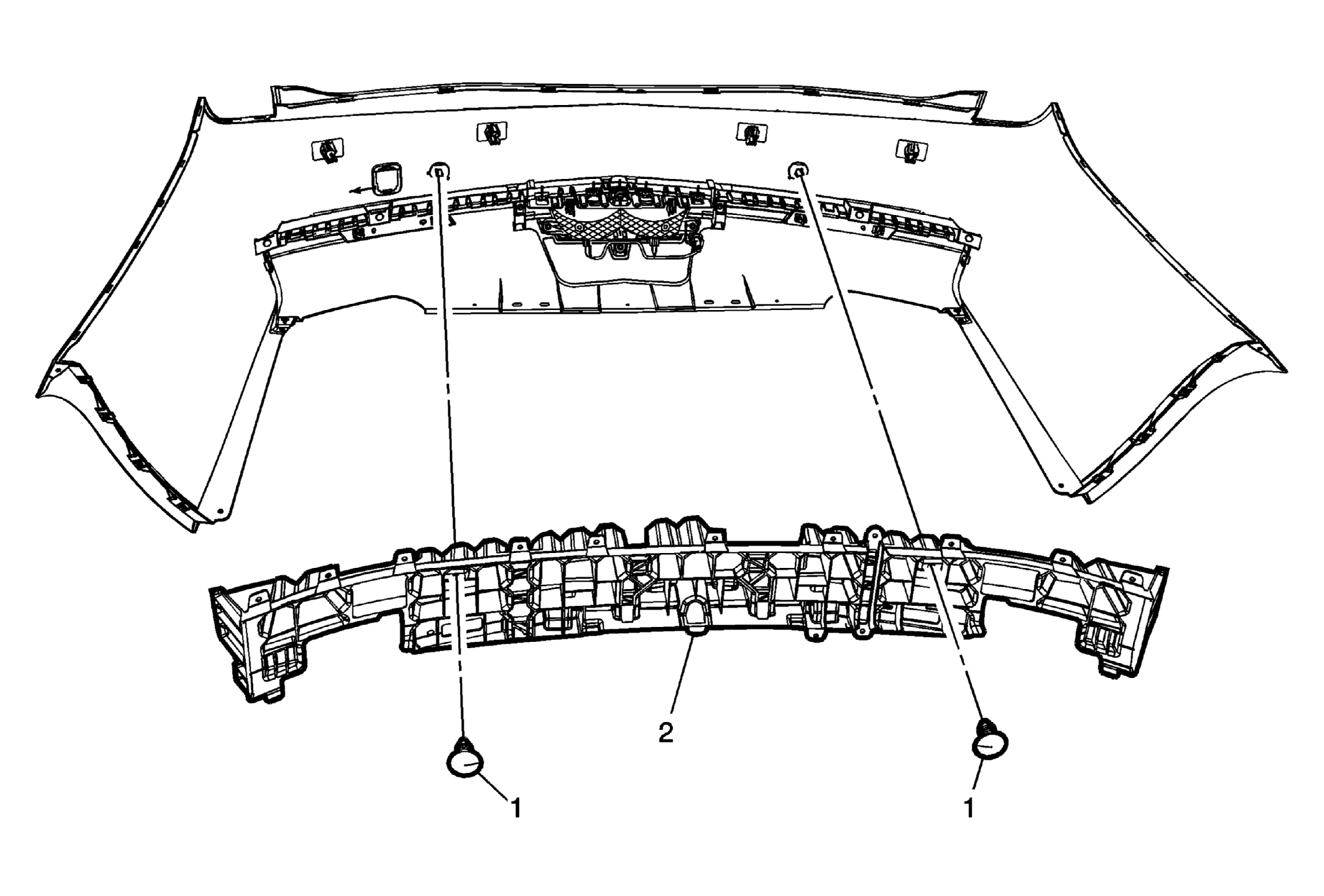

Fig 1: Rear Bumper Energy Absorber & Retainers

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear bumper fascia. Refer to Rear Bumper Fascia Replacement .
1	Rear Bumper Energy Absorber Push-In Retainer (Qty: 2) Procedure Disconnect the electrical connector/harness. Disengage the push-in retainers.
2	Rear Bumper Energy Absorber

Callout

Component Name

Preliminary Procedure
Remove the rear bumper fascia. Refer to Rear Bumper Fascia Replacement .

Rear Bumper Energy Absorber Push-In Retainer (Qty: 2)

Procedure

Rear Bumper Energy Absorber
