Rear Side Door Front Auxiliary Weatherstrip Replacement

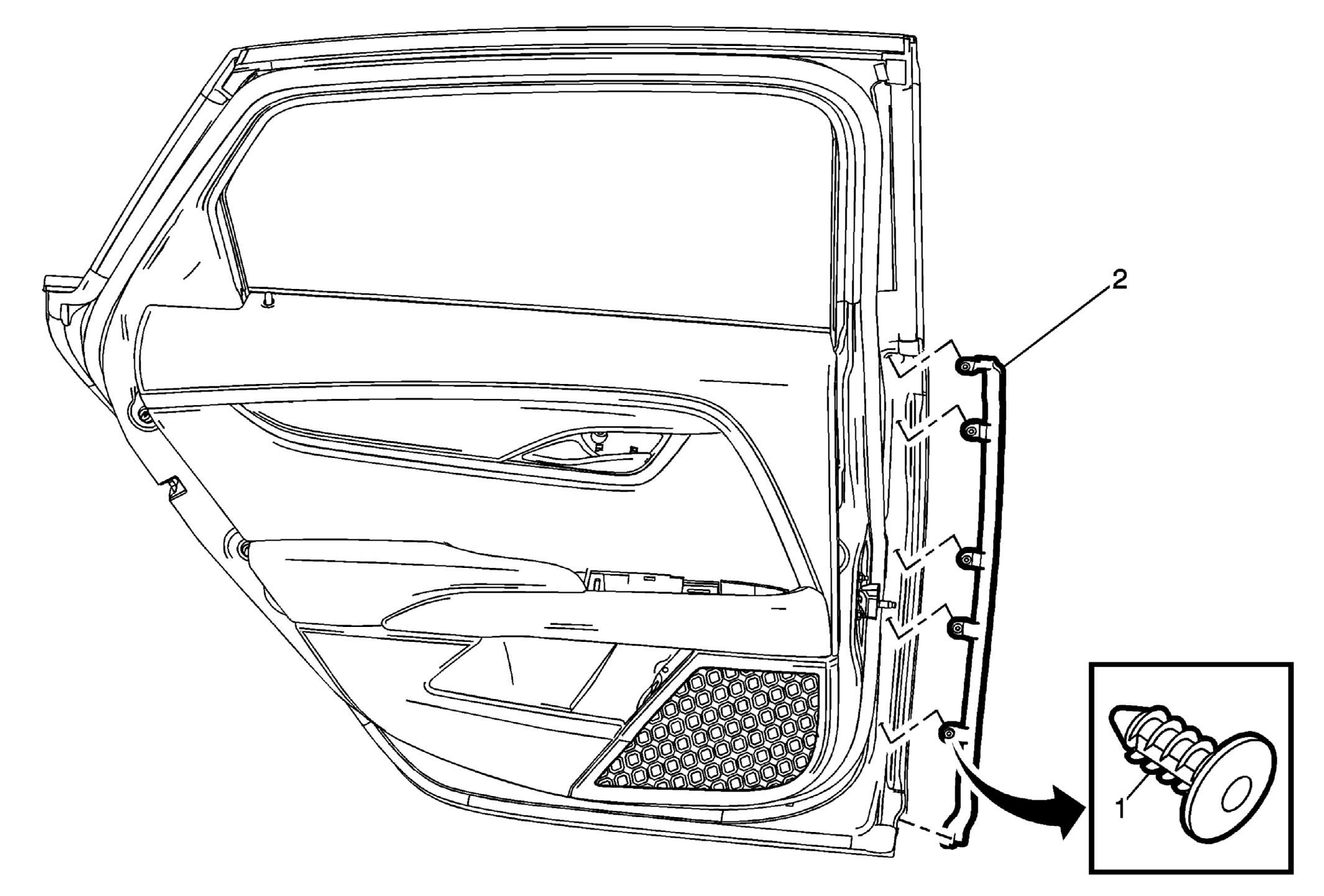

Fig 1: Rear Side Door Front Auxiliary Weatherstrip & Retainers

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Rear Side Door Front Auxiliary Weatherstrip Retainer (Qty: 6) Procedure Open the rear side door fully. Using a suitable tool, remove the weatherstrip retainers from the front edge of the door. After removing the weatherstrip, clean the door edge surface with a 50/50 mixture of isopropyl alcohol and water by volume on a dampened lint free cloth.
2	Rear Side Door Front Auxiliary Weatherstrip NOTE: Inspect the door to ensure a proper seal after the weatherstrip has been replace.

Callout

Component Name

Rear Side Door Front Auxiliary Weatherstrip Retainer (Qty: 6)

Procedure

Open the rear side door fully.
Using a suitable tool, remove the weatherstrip retainers from the front edge of the door.
After removing the weatherstrip, clean the door edge surface with a 50/50 mixture of isopropyl alcohol and water by volume on a dampened lint free cloth.

Rear Side Door Front Auxiliary Weatherstrip

NOTE:

Inspect the door to ensure a proper seal after the weatherstrip has been replace.
