Hood Front Weatherstrip Replacement
Hood Front Weatherstrip Replacement

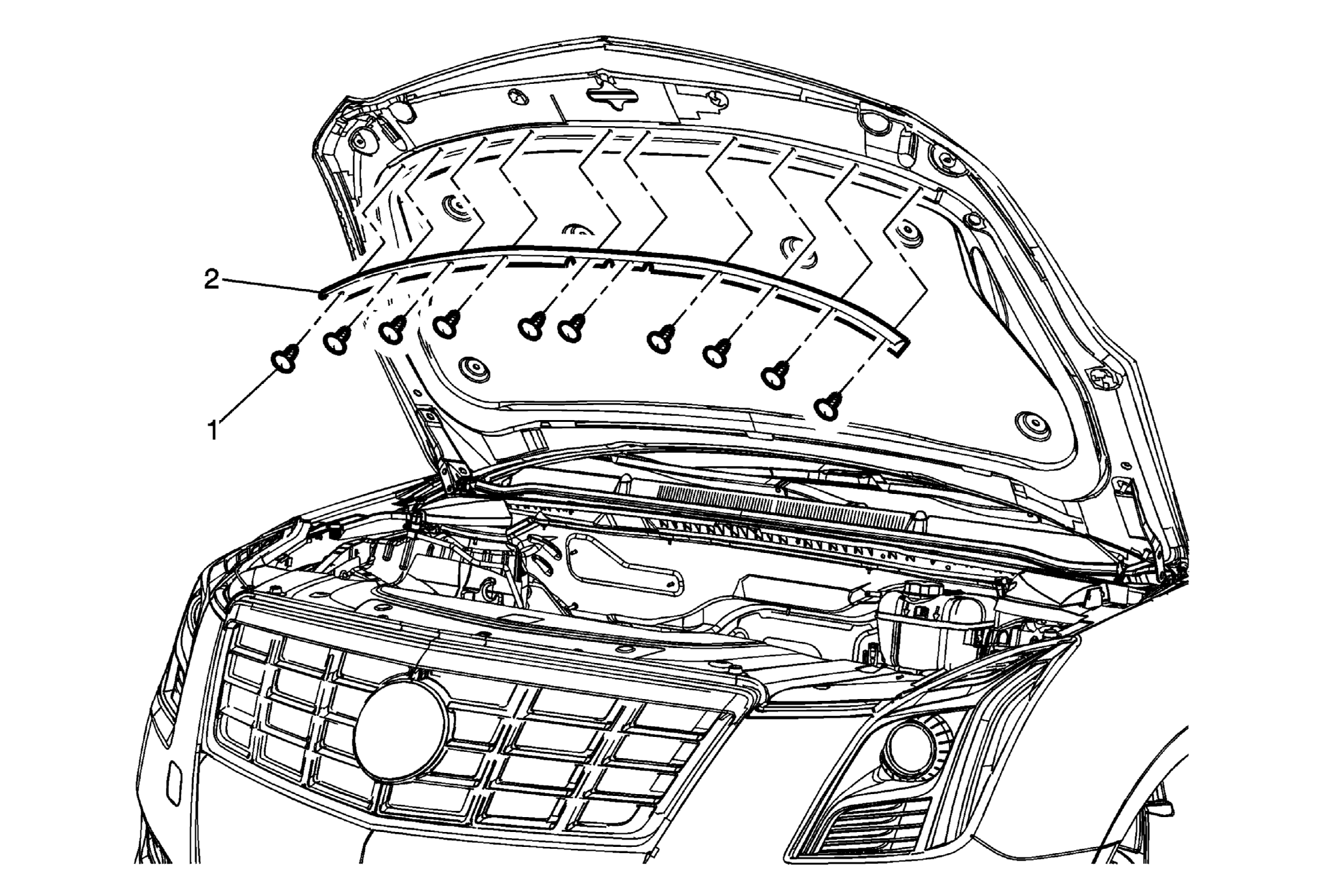

Fig 1: Hood Front Weatherstrip & Retainers
Courtesy of GENERAL MOTORS COMPANY
Callout
Component Name
1
Hood Front Weatherstrip Retainer (Qty: 10)
2
Hood Front Weatherstrip
Procedure
The hood front weatherstrip is held in place with ten plastic push-in retainers. Carefully pull the push-in retainers to release the hood front weatherstrip from the hood insulator.
