Front Side Door Lower Auxiliary Weatherstrip Replacement

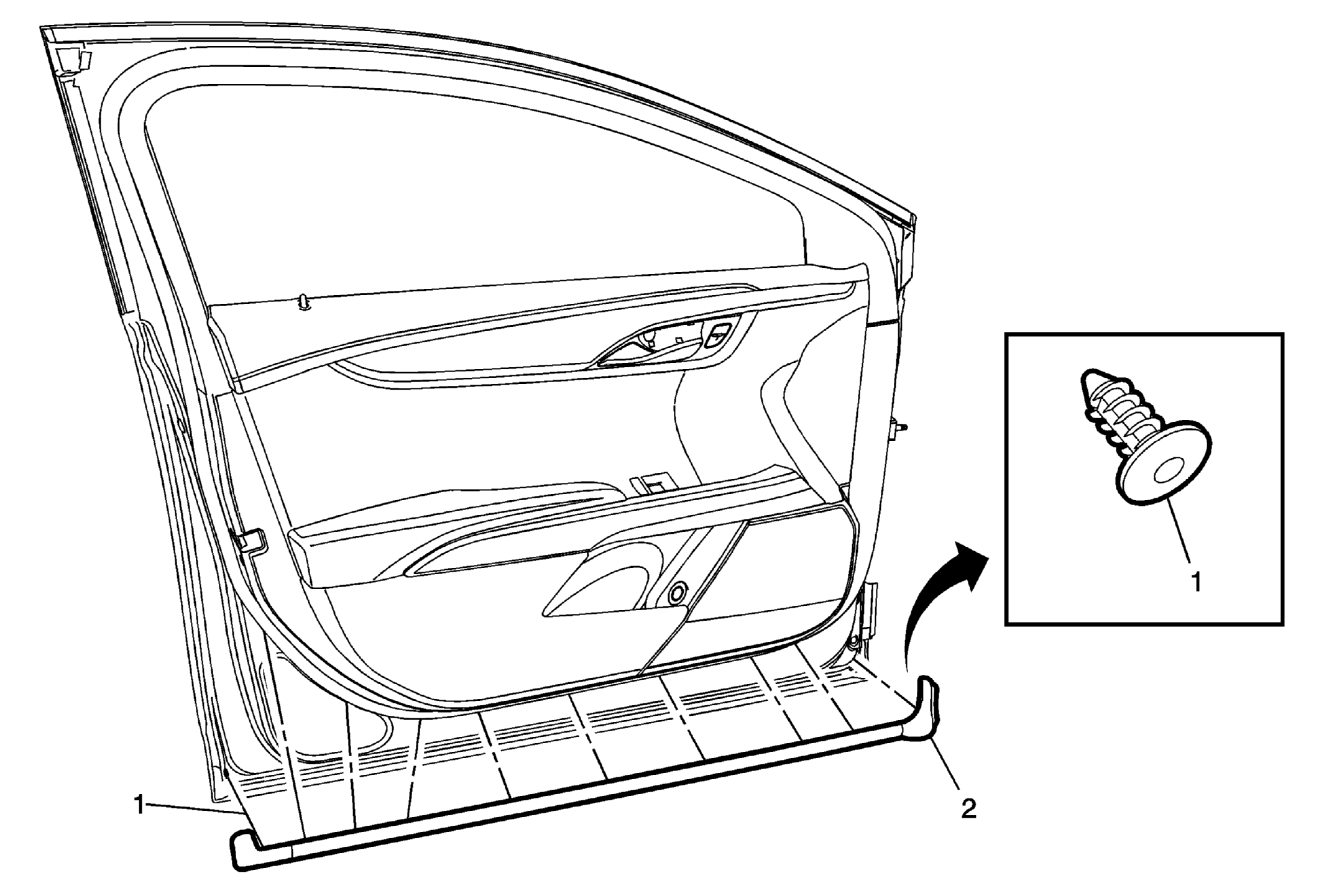

Fig 1: Front Side Door Lower Auxiliary Weatherstrip & Retainers

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Front Side Door Auxiliary Weatherstrip Retainer (Qty: 10) Procedure Open the front side door fully. Using a suitable tool, remove both corner retainers first then release the ones across the bottom of the door. After removing the weatherstrip, clean lower inside surface edge of the door with a 50/50 mixture of isopropyl alcohol and clean water by volume on a dampened lint free cloth.
2	Front Side Door Auxiliary Weatherstrip NOTE: Inspect the door to ensure a proper seal after the weatherstrip has been replaced.

Callout

Component Name

Front Side Door Auxiliary Weatherstrip Retainer (Qty: 10)

Procedure

Open the front side door fully.
Using a suitable tool, remove both corner retainers first then release the ones across the bottom of the door.
After removing the weatherstrip, clean lower inside surface edge of the door with a 50/50 mixture of isopropyl alcohol and clean water by volume on a dampened lint free cloth.

Front Side Door Auxiliary Weatherstrip

NOTE:

Inspect the door to ensure a proper seal after the weatherstrip has been replaced.
