Transmission Fluid Cooler Outlet Pipe Replacement (LFX)

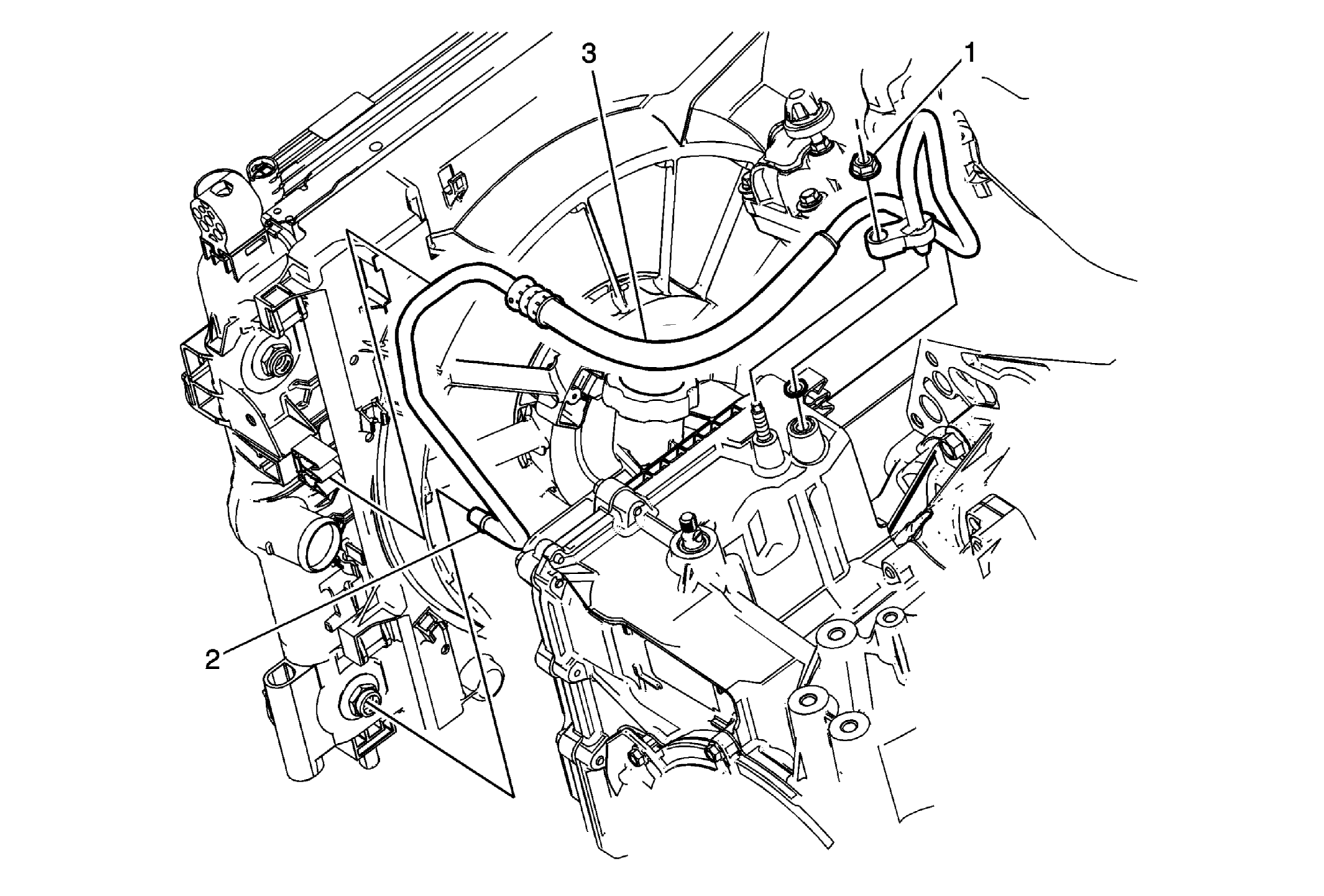

Fig 1: Transmission Fluid Cooler Outlet Pipe (LFX)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Transmission Fluid Cooler Pipe Nut CAUTION: Refer to Fastener Caution . Tighten 22 N.m (16 lb ft)
2	Transmission Fluid Quick Connect Fitting Procedure Remove and discard the sealing washer. Refer to Transmission Fluid Cooler Hose/Pipe Quick-Connect Fitting Disconnection and Connection .
3	Transmission Fluid Cooler Outlet Pipe Procedure Note the routing of the transmission line to ensure proper installation. Remove the transmission line from the clips securing the line to the transmission and fan shroud. Inspect the transmission fluid level. Refer to Transmission Fluid Level and Condition Check .

Callout

Component Name

Transmission Fluid Cooler Pipe Nut

CAUTION:

Tighten
22 N.m (16 lb ft)

Transmission Fluid Quick Connect Fitting
Procedure
Remove and discard the sealing washer. Refer to Transmission Fluid Cooler Hose/Pipe Quick-Connect Fitting Disconnection and Connection .

Transmission Fluid Cooler Outlet Pipe

Procedure

Note the routing of the transmission line to ensure proper installation.
Remove the transmission line from the clips securing the line to the transmission and fan shroud.
Inspect the transmission fluid level. Refer to Transmission Fluid Level and Condition Check .
