Transmission Fluid Cooler Inlet Pipe Replacement (LFX)

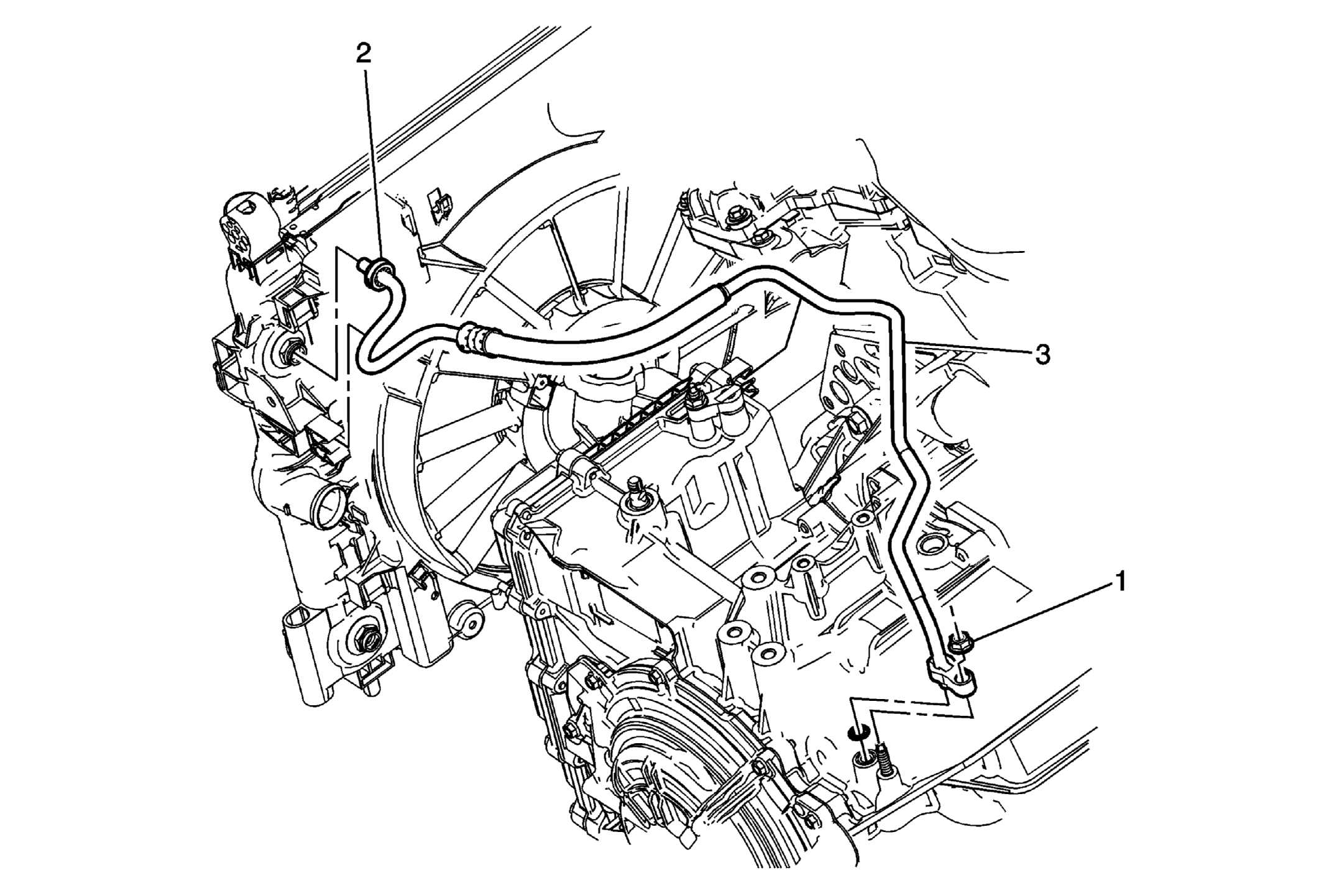

Fig 1: Transmission Fluid Cooler Inlet Pipe (LFX)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the range selector lever cable bracket. Refer to Range Selector Lever Cable Bracket Replacement .
1	Transmission Fluid Cooler Pipe Nut CAUTION: Refer to Fastener Caution . Tighten 22 N.m (16 lb ft)
2	Transmission Fluid Quick Connect Fitting Procedure Remove and discard the sealing washer and replace with NEW. Refer to Transmission Fluid Cooler Hose/Pipe Quick-Connect Fitting Disconnection and Connection .
3	Transmission Fluid Cooler Inlet Pipe Procedure Note the routing of the transmission line to ensure proper installation. Remove the transmission line from the clips securing the line to the transmission and fan shroud. Inspect the transmission fluid level. Refer to Transmission Fluid Level and Condition Check .
