Home >> Cadillac >> 2017 >> XTS Base >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transmission - 6T70 (M7U M7W), 6T75 (M7V), Or 6T80 (Mhm) - Schematic Wiring Diagrams >> Schematic Wiring Diagrams >> Automatic Transmission Controls Wiring Schematics >> Fluid Temperature and Speed Sensors, Valve Position, Pressure and Shift Controls

Fluid Temperature and Speed Sensors, Valve Position, Pressure and Shift Controls

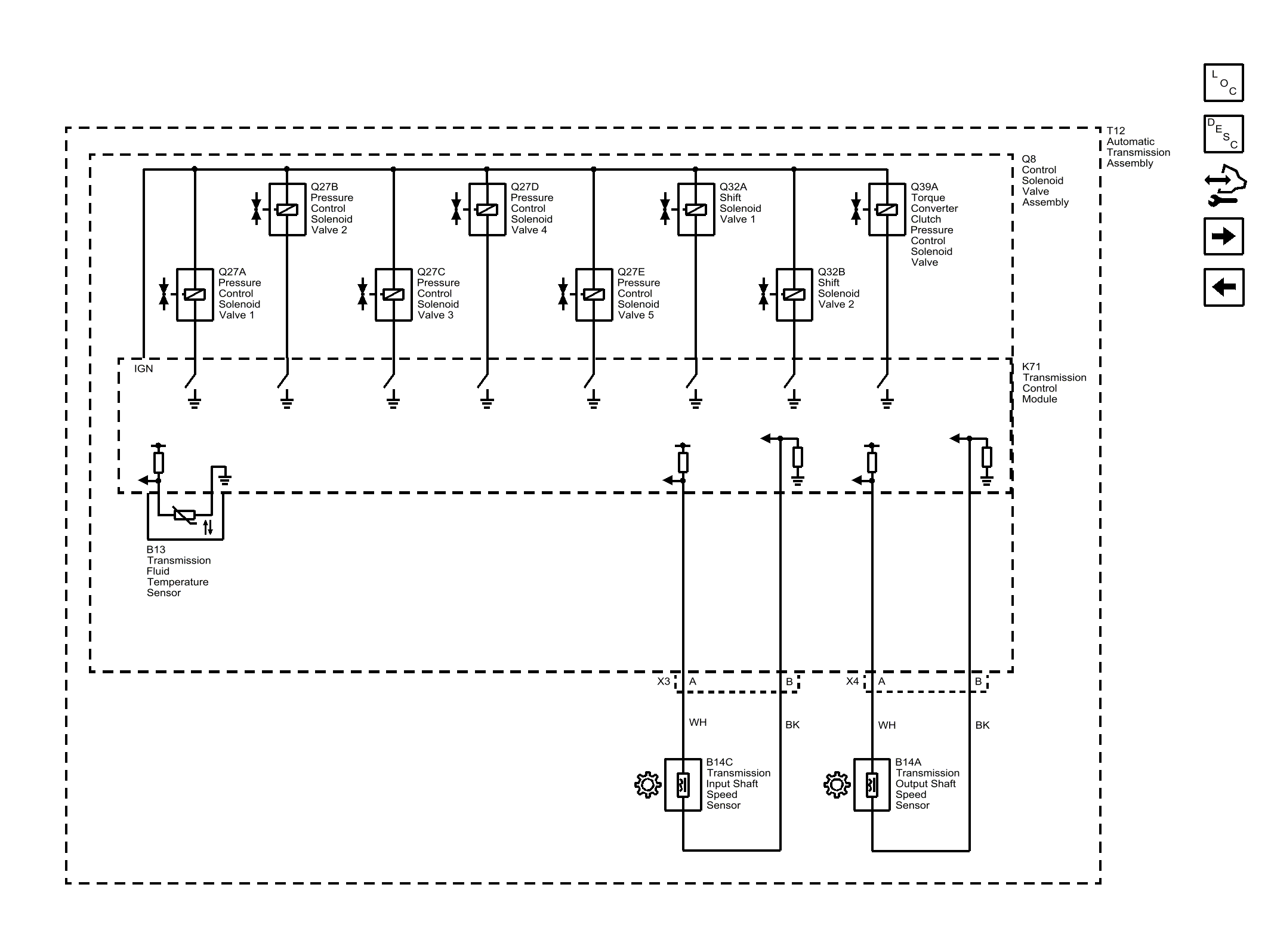

Fig 1: Fluid Temperature and Speed Sensors, Valve Position, Pressure and Shift Controls
GM4454749Courtesy of GENERAL MOTORS COMPANY
